Name: Stainless Steel Slitter And Rewinder Machine 1050mm PLC Control System
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRFQ-1050
Availability: InStock

Home > products > Oil Filter Production Line >

Stainless Steel Slitter And Rewinder Machine 1050mm PLC Control System

Stainless Steel Slitter And Rewinder Machine

Slitter And Rewinder Machine 1050mm

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRFQ-1050

Request A Quote

Product Details

Control System:

PLC

Filter Type:

Hydraulic Filter

Voltage:

220V/380V

Filter Efficiency:

99.97%

Power Source:

Electric

Material:

Stainless Steel

Frequency:

50Hz

Slitting Dimensions:

Customized

Highlight:

Stainless Steel Slitter And Rewinder Machine

Slitter And Rewinder Machine 1050mm

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

40-45 days

Payment Terms

L/C,T/T

6KW Oil Filter Production Line 50Hz Two Components Clipping Machine

Get Best Price

Hydraulic Filter Clipping Machine 6KW Electric Power Source

Get Best Price

220V CNC Oil Filter Production Line 15mm - 55mm Pleating Height Knife Pleating Machine

Get Best Price

Electric 380V Oil Filter Production Line 2.5m Width Knife Pleating Machine

Get Best Price

Contact Now

Product Description

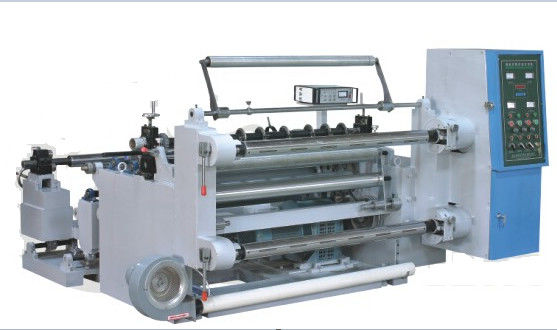

1050mm Stainless Steel Slitting and Rewinding Machine

Technical Parameters:

Type	FQ-1050
Max.Width of Mother	1050mm
Max.diameter of Mother Roll	Φ800mm
Width of Final Roll	30-600mm
Slitting and Rewinding Speed	5-180m/min
Motor Power	3.5kw

Features:

1. Main Motor: electromagnetic speed regulation motor
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake for unwinding tension control
5. Air shaft for rewinding, Magnetic powder clutch for rewinding tension control.
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.

Application:

1.Wire Mesh Slitting and Rewinding Machine adopts microcomputer control automatic slitting and rewinding with such characteristics as reasonable structure,complete function and stable performance and it is in the lead at home.

2.It has been widely used for converting industry such base materials as various roll film materials, adhesive basis paper, aluminum foil laminated with film, insulating paper, sensitive material and roll paper, etc.and it is a kind of main auxiliary equipment for packing products.
