Name: Electric 380V Oil Filter Production Line 2.5m Width Knife Pleating Machine
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRCZ-2500
Availability: InStock

Home > products > Oil Filter Production Line >

Electric 380V Oil Filter Production Line 2.5m Width Knife Pleating Machine

Electric Oil Filter Production Line

380V Oil Filter Production Line

2.5m Knife Pleating Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRCZ-2500

Request A Quote

Electric 380V Oil Filter Production Line 2.5m Width Knife Pleating Machine

Product Details

Production Capacity:

1000 Pieces/hour

Filter Type:

Filter

Voltage:

220V

Power Source:

Electric

Warranty:

1 Year

Frequency:

50Hz

Highlight:

Electric Oil Filter Production Line

380V Oil Filter Production Line

2.5m Knife Pleating Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

6KW Oil Filter Production Line 50Hz Two Components Clipping Machine

Get Best Price

Hydraulic Filter Clipping Machine 6KW Electric Power Source

Get Best Price

220V CNC Oil Filter Production Line 15mm - 55mm Pleating Height Knife Pleating Machine

Get Best Price

Electric 380V Oil Filter Production Line 2.5m Width Knife Pleating Machine

Get Best Price

Contact Now

Product Description

380V 2.5m Width Knife Pleating Machine

Technical Parameter

Max width	2500mm
adjustable pleating height	15-55mm
Pleating speed	0-85pleats/min
Power supply	380V/220V/50HZ
Motor power	4pcs x 2.5 KW servo motors
0.75KW servo motor
Preheating power	30KW
Heating temp	normal-300℃
Working air pressure	0.6Mpa
M/C weight	2000kg
PLC to control and 12 inch camera to check the pleats
Pleating	4500mm1580mm2250mm (LWH) 2000KG
Decoiler	3800mm1300mm1200mm 450KG

Features:

1.Pleating Machine consists of two parts, i.e. the front preconditioning part and the plate- type pleat collecting part. The pleating machine works by linkage and is controlled by PLC. The operating panel is easy to operate, automatically adjusting the pleating height and knives' movement angle. The finished products have smooth edges, uniform surfaces and high precisions.

2.When it comes to the adjustment of pleating height, the user can type the relevant digits in the touch screen without manually disassemble the screws or plates. Non-skillful operator can change the parameters.

3. As to the high speed of pleating, the median of pleating speed can reach as high as 200 pleats per minute if not considering the strength of extension of paper media.

4. It can make more than one kind of pleats, which means it can make pleats of different heights (i.e. M-type and W- type pleats), opening up a new dimension for filter manufacturers to develop new products.

5.The pleating knives are controlled by an independent programmable movement module. They are driven by linkage instead of the traditional cam mechanism. The knives releases from the restrictions of traditional movement. The movement can be programed based on the filters to accommodate the demands of new ever-changing materials and high productivity companies.

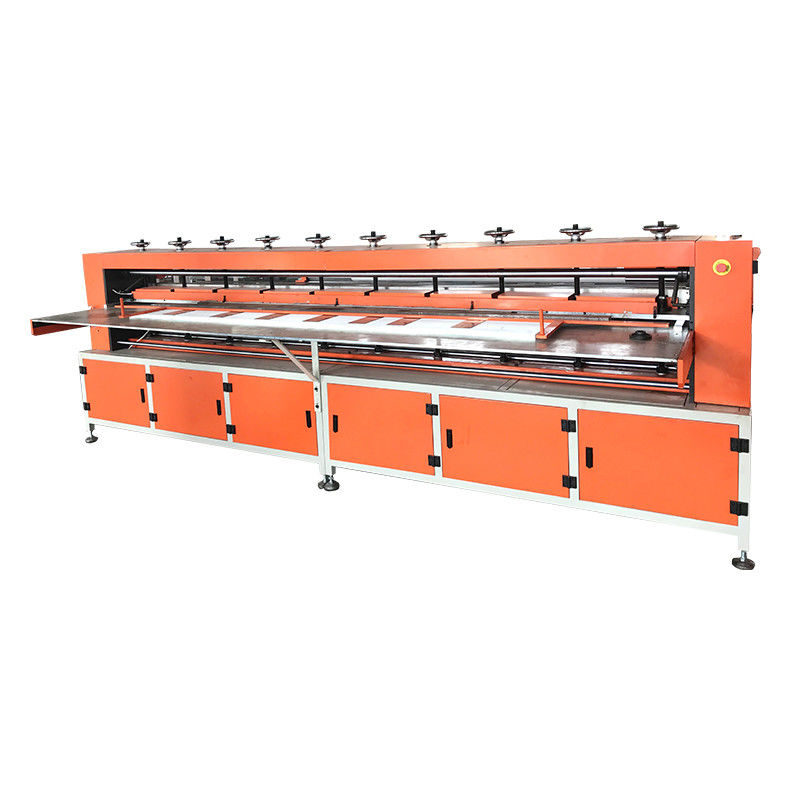

Electric 380V Oil Filter Production Line 2.5m Width Knife Pleating Machine 0

Electric 380V Oil Filter Production Line 2.5m Width Knife Pleating Machine 1
