Name: Stainless Steel Hydraulic Filter Pleating Machine 4KW 380 Pleats/Min Speed
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRK6-700
Availability: InStock

Home > products > Oil Filter Production Line >

Stainless Steel Hydraulic Filter Pleating Machine 4KW 380 Pleats/Min Speed

Stainless Steel Filter Pleating Machine

Filter Pleating Machine 4KW

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRK6-700

Request A Quote

Product Details

Control System:

PLC

Filter Type:

Hydraulic Filter

Voltage:

220V/380V

Filter Efficiency:

99.97%

Power Source:

Electric

Material:

Stainless Steel

Frequency:

50Hz

Mixing Rate:

Customized

Highlight:

Stainless Steel Filter Pleating Machine

Filter Pleating Machine 4KW

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

40-45 days

Payment Terms

L/C,T/T

6KW Oil Filter Production Line 50Hz Two Components Clipping Machine

Get Best Price

Hydraulic Filter Clipping Machine 6KW Electric Power Source

Get Best Price

220V CNC Oil Filter Production Line 15mm - 55mm Pleating Height Knife Pleating Machine

Get Best Price

Electric 380V Oil Filter Production Line 2.5m Width Knife Pleating Machine

Get Best Price

Contact Now

Product Description

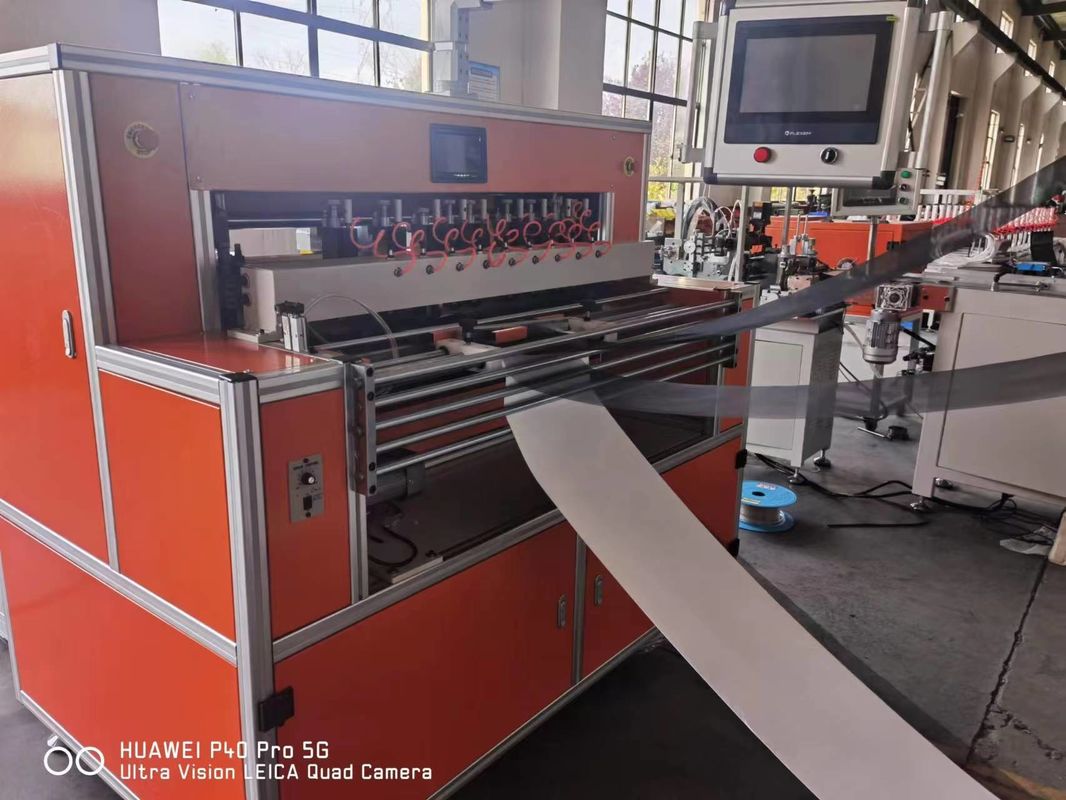

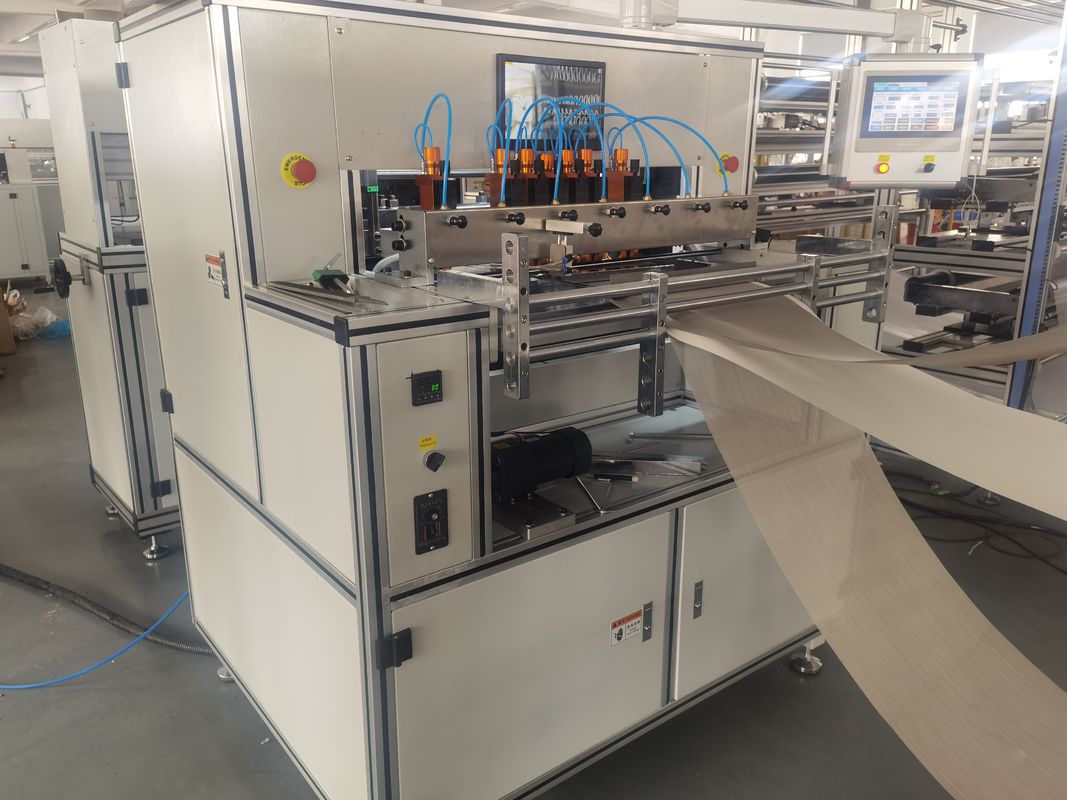

Stainless Steel Hydraulic Filter Filter Pleating Machine

Technical Parameters:

Material Rack	3 layers
Pleating Height	6-60mm ( automatically adjustable)
Speed:	380 pleats/min
Machine power:	4kw
Working air pressure:	0.6MPa
Power supply:	380V/50Hz
M/C weight:	650kg
M/C dimension:	180012001700mm

Features:

Stainless Steel Hydraulic Filter Pleating Machine adopts upper and lower knife alternatively perform folding, from the knife automatic adjustment by computer, can reach different fold higher requirements, accurate size.
In the paper folding machine automatic dotting counter, folding processing and preheating and forming etc.
Stainless Steel Hydraulic Filter Pleating Machine can also be folded all the different rules of fold change.
Folding knife of this machine can change any angle, ensure the folding does not damage any kind of filter material.
The pleating knifes movements are controlled by servo motors.
The pleat height, opening angle of pleating blades and closing gap can be parametric set. For a variety of different materials and thickness, single-layer or multi-layer filter.

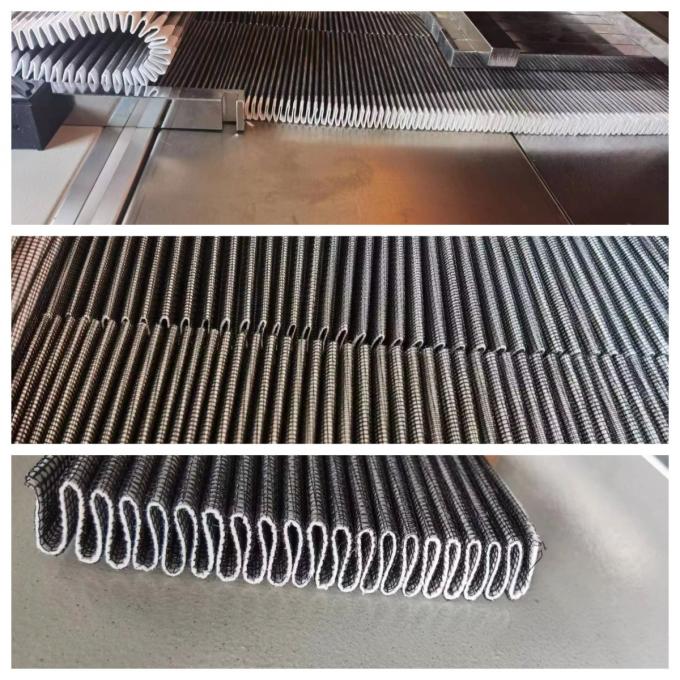

Operation is simple and fast, high production efficiency, folded surface heating effect well, equipment noise and so on. Depending on your needs, produce different types of pleats, such as: regular, M, W Type reciprocating variant, descending the gradient type.

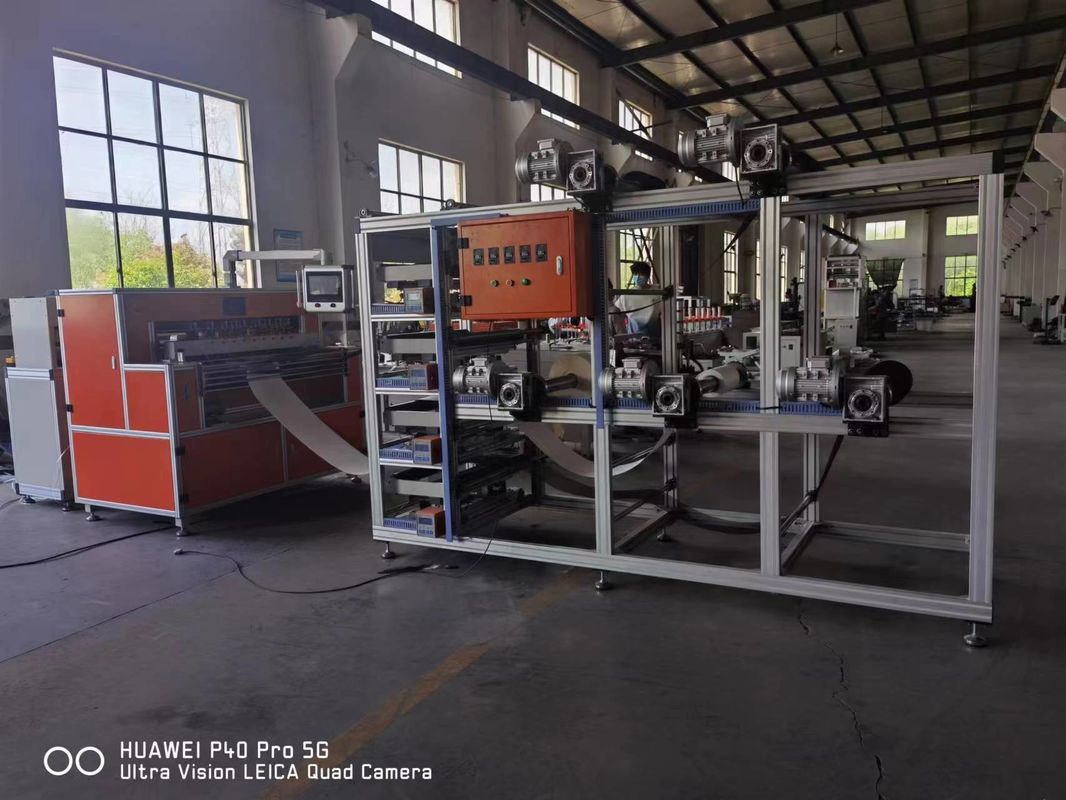

Select the multi-layer unwinder with the corresponding width according to the width of the pleating machine.

The number of winding layers can be configured arbitrarily according to the requirements. Generally, the commonly used combinations are 3, 5, 6, 9, and 10 layers.
