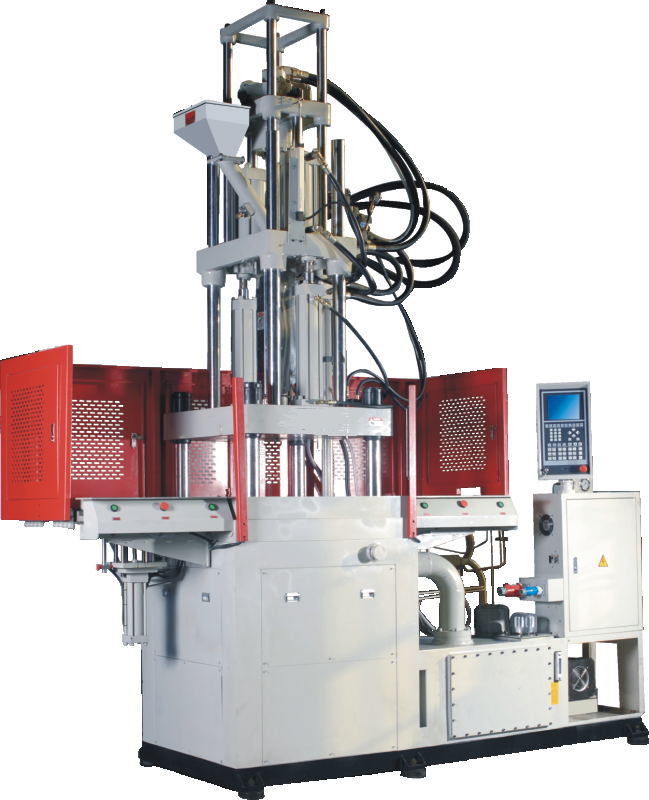

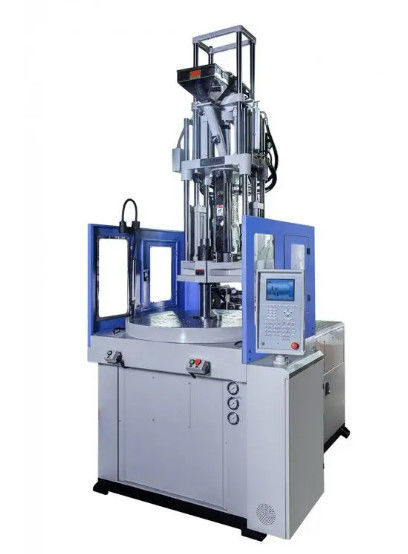

Name: 1600KG Vertical PP Air Filter Injection Moulding Machine
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRPP-1600
Availability: InStock

Home > products > Purifier Filter Making Machine >

1600KG Vertical PP Air Filter Injection Moulding Machine

1600KG Air Filter Injection Moulding Machine

Vertical Air Filter Injection Moulding Machine

Vertical PP Injection Moulding Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRPP-1600

Request A Quote

Product Details

Production Capacity:

500 Pieces/hour

Filter Type:

PP Air Filter

Voltage:

220V/380V

Power Source:

Electric

Warranty:

1 Year

Frequency:

50Hz

Highlight:

1600KG Air Filter Injection Moulding Machine

Vertical Air Filter Injection Moulding Machine

Vertical PP Injection Moulding Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

45-55days

Payment Terms

L/C,T/T

Servo Motors CNC Purifier Filter Making Machine 1050mm Width Knife Pleating Machine

Get Best Price

Video

4 Station Air Filter Strips Cutting Machine 8KW 50mm - 400mm Width

Get Best Price

Video

1600KG Vertical PP Air Filter Injection Moulding Machine

Get Best Price

Video

CNC Control Knife Pleating Machine 1050mm Width 220V / 380V 50Hz

Get Best Price

Contact Now

Product Description

1600KG Vertical PP Air Filter Molding Injection Machine

Technical Parameter

Style	VERTICAL
injection rate (g/s)	126
machine type	Hydraulic
weight	1600KG
power	17.2KW
warranty	12 months
plastic processed	PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP
ejector stroke	100mm
theoretical shot volume	143cm³
screw speed	10 - 280 rpm
screw diameter	36mm
open stroke	200mm
model number	TFV3-85R2
core components	Bearing, motor, Pump, Gear, Pressure vessel, Screw
Heater Power	7 Kw
Certification	CE

Features:

1.PP air filter injection molding machine is specialized equipment designed to produce air filters made from polypropylene (PP) through the injection molding process.

2. Material Preparation: PP granules or powder are fed into the machine’s hopper.

3. Melting & Injection: The material is heated and melted in the barrel by a reciprocating screw. The molten PP is then injected under high pressure into a precision mold cavity through the nozzle.

4. Cooling & Solidification: The mold is cooled to solidify the plastic, forming the air filter’s shape.

5. Ejection: The mold opens, and the finished part is ejected automatically.

Advantages

1. High Efficiency: Fast cycle times (e.g., 15–60 seconds per part) with multi-cavity molds for mass production.

2. Precision: Tight tolerances (±0.1mm) ensure consistent fit and performance.

3. Automation: Features like auto-loading, robotic extraction, and quality checks reduce labor costs.

4. Versatility: Adaptable to various filter designs (e.g., pleated, flat-panel) for automotive, HVAC, or industrial applications.

Applications

- Automotive: Engine air filters, cabin air filters.

- Industrial: Dust collectors, compressor filters.

- Consumer Goods: Air purifiers, vacuum cleaner filters.
