220V / 380V Automated Filter Tester Automatic Paper Bursting Strength Tester Machine

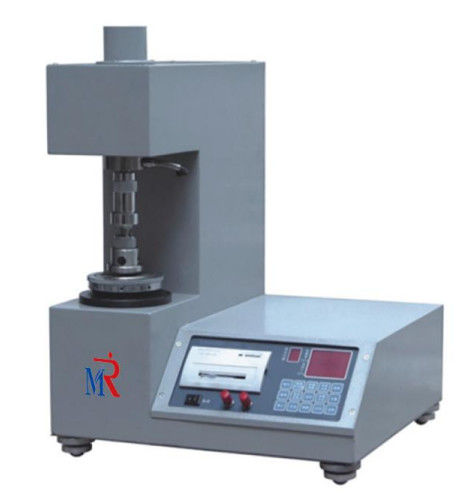

Automatic Paper Bursting Strength Tester

Applications

1. Automatic Paper Bursting Strength Tester is used to test bursting strength of materials, digital display pressure, automatically retain maximum rupture strength value when the specimen broken, and print test results. This bursting strength tester indicating several bits type, capacity 0-100kg / cm2.

2. Paper Bursting Strength Tester is widely applicable to packaging materials, including plain paper, corrugated paper, toilet paper, packaging, tape, leather, cloth, packaging films, etc. It can effectively monitor the quality of the product.

Usage Standards

ASTM D2210, TAPPI TT403, JISL1096 / L1018 / P8112 / P8131 ISO-2759, GB-6545

Technical Parameters

1. automatic clamping and release device, the specimen clamping force> 690kPa (adjustable)

2. test the system for leaks: within 1min drop <10% Pmax

3. resolution: 0.01kPa; Accuracy: ± 0.5% fs

4. exhaust volume: (0.02 ~ 0.3) m3 / min

5. rated pressure :( 0.6 to 0.7)

6, test unit: Pa, kPa, kgf, LB

7. weight: about 50kg  hydraulic oil: glycerol 85%, 15% distilled water

8. clamping ring material: stainless steel SUS 304 #

9. clamping ring diameter: the ring: Φ 31.50mm     lower ring: Φ 31.50mm

10. volume: 44 * 42 * 56cm

11. power supply: AC220V ± 10%, 50Hz 120W

12. bursting measuring range: 0 ~~ 5600KPA

13. air pressure source: min.6kg / cm² (customer)

14. pressing speed: 170 ± 15ml / min

15. standard configuration: wrench*1, dedicated glycerine bottle*1, correction sheet*10, rubber membrane*5, special hammer*1

16. print test value (minimum, maximum, average, time)

17. gas source: air compressor (by customer)
