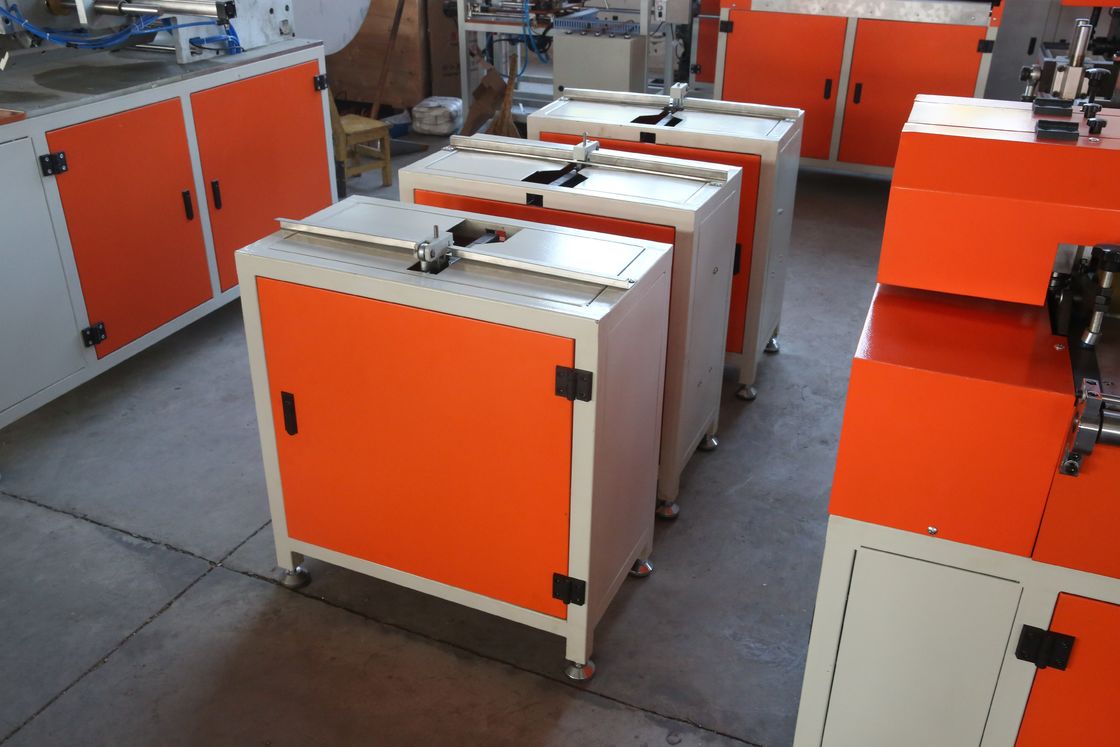

50Hz Pocket Filter Making Machine 2KW Bag Filter Out Frame Clinching Machine

Bag Filter Outer Frame Clinching Machine

Parameter:

1. Capacity:30-40times/min

2. Worker:1-3

3. Power:2KW

4. Voltage:380V/50HZ

5. Weight:150kg

Feature:

Pocket Filter Outer Frame Riveting Machine

A Pocket Filter Outer Frame Riveting Machine is specialized equipment designed for assembling and securing the outer frames of pocket filters. These machines are widely used in industries such as air purification, HVAC systems, and industrial filtration to ensure hermetic sealing and structural integrity of filter assemblies.

1. Working Principle

- Utilizes advanced riveting technology (e.g., orbital, hydraulic, or pneumatic) to deform rivets or fasteners, joining the outer frame components (e.g., galvanized steel, aluminum) with high precision.

- Ensures uniform pressure distribution to prevent frame distortion and maintain filter efficiency.

2. Structural Components

- Riveting Head: Customizable for different rivet sizes and frame materials.

- Power System: Operated by pneumatic, hydraulic, or electric power sources for consistent performance.

- Control Panel: User-friendly interface for adjusting parameters like pressure, stroke, and speed.

- Worktable: Equipped with fixtures to hold filter frames securely during riveting.

3. Performance Advantages

- High Efficiency: Capable of processing multiple rivets per minute for mass production.

- Precision: Maintains tight tolerances (e.g., ±0.1mm) to meet ISO standards.

- Durability: Constructed with heavy-duty materials to withstand continuous operation.

- Versatility: Compatible with various frame sizes and configurations.

4. Applications

- Air Filtration: HVAC systems, cleanrooms, and air purifiers.

- Industrial Filtration: Chemical, pharmaceutical, and food processing industries.

- Automotive: Cabin air filters and engine air intake systems.

Technical Specifications (Typical)

- Riveting Force: 5–20 tons (adjustable).

- Cycle Time: 3–10 seconds per rivet.

- Max. Frame Thickness: 1.5–3mm.

- Power Supply: 220V/380V, 50/60Hz.

This machine plays a critical role in enhancing filter lifespan, reducing air leakage, and optimizing filtration performance.
