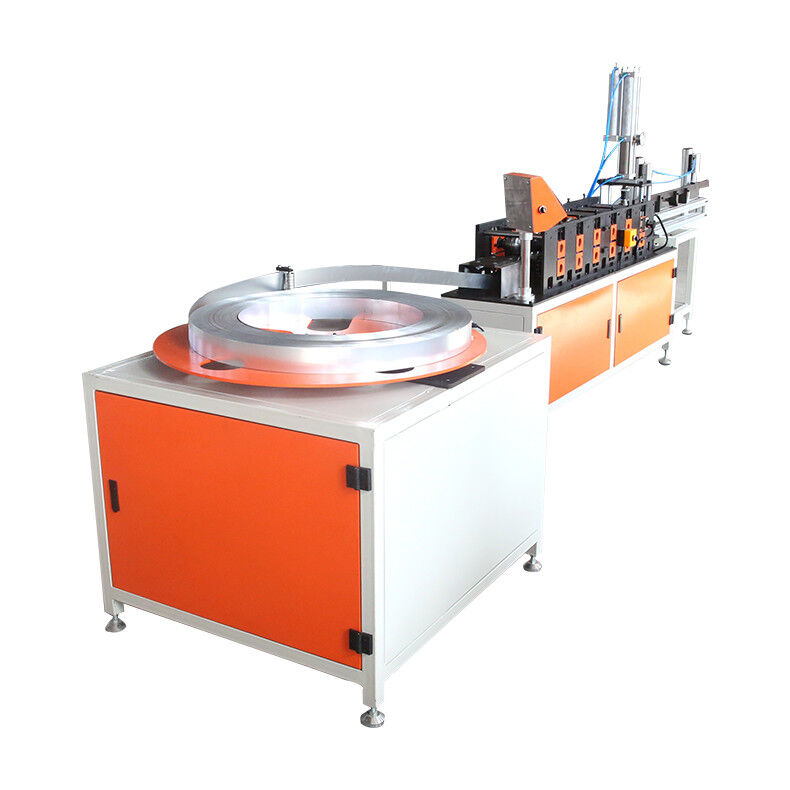

Bag Filter Inner Frame Forming Machine
Parameter:
|
Working Speed
|
0-400pcs/h
|
|
Voltage
|
AC380V/50HZ
|
|
Power
|
3KW
|
|
Size
|
2500x700x1700mm
|
|
Weight
|
460
|
|
Air Consumption
|
7.5L/min
|
Applications
Air Filtration: HVAC systems, cleanrooms, and air purifiers.
Industrial Filtration: Chemical, pharmaceutical, and food processing industries.
Water Treatment: Filters for wastewater and drinking water systems.
Technical Specifications (Typical)
Material Thickness: 0.2–0.5mm (adjustable).
Forming Speed: 10–30 frames per minute.
Power Supply: 220V/380V, 50/60Hz.
This machine ensures the structural integrity of pocket filters, enhancing their durability and filtration efficiency.
Function:
Clamping the strips, preventing dropping, two stations independent controlling.
Feature:
1. Bag Filter Inner Frame Forming Machine is suitable for processing the outer frame models of air cloth filter bags.
2. Bag Filter Inner Frame Forming Machine is composed of four parts: an automatic feeding device, multiple sets of rolling dies, a cutter mechanism, and a collecting and pressing mechanism.
3. Place the molded iron sheet on the feeding device, place the molding material on the material rack through the disc in the feeding device;
4. then pass the molding material through the automatic tensioning mechanism of the feeding device, and pass the material strips through each component in turn mold.
5. you can set the parameters through the touch screen according to the required size, and complete the processing simply and clearly. The inner strip forming machine is the first choice for the outer frame forming processing of air cloth filter bags.
6. Bag Filter Inner Frame Forming Machine uses electricity and compressed air as power sources.
