220V / 50Hz Truck Air Filter Making Machine Electric PVC Caps Gluing Machine

220V / 50Hz Truck Air Filter Making Machine Electric PVC Caps Gluing Machine

Truck Air Filter Making Machine Electric

220V Truck Air Filter Making Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

CE

Model Number:

JSMRTM-2

Contact Us
Request A Quote
220V / 50Hz Truck Air Filter Making Machine Electric PVC Caps Gluing Machine
Product Details
Production Capacity:
500 Pieces/hour
Filter Type:
Purifier Filter
Voltage:
220V/380V
Power Source:
Electric
Warranty:
1 Year
Frequency:
50Hz
Highlight:

Truck Air Filter Making Machine Electric

,

220V Truck Air Filter Making Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiate
Packaging Details
plywood cases
Delivery Time
30-45days
Payment Terms
L/C,T/T
RELATED PRODUCTS
Good price 380V Truck Air Filter Paper Machine 50Hz With PLC Control System online Video

380V Truck Air Filter Paper Machine 50Hz With PLC Control System

Get Best Price
Good price 600mm Automatic Truck Air Filter Making Machine Expanded Metal Mesh Machine online Video

600mm Automatic Truck Air Filter Making Machine Expanded Metal Mesh Machine

Get Best Price
Good price Full Auto Air Filter Spiral Machine 120mm - 420mm With Metal Strips online Video

Full Auto Air Filter Spiral Machine 120mm - 420mm With Metal Strips

Get Best Price
Good price 1000mm Filter Mesh Welding Machine 220V Electric Power Source online Video

1000mm Filter Mesh Welding Machine 220V Electric Power Source

Get Best Price
Contact Us
Contact Now
Product Description

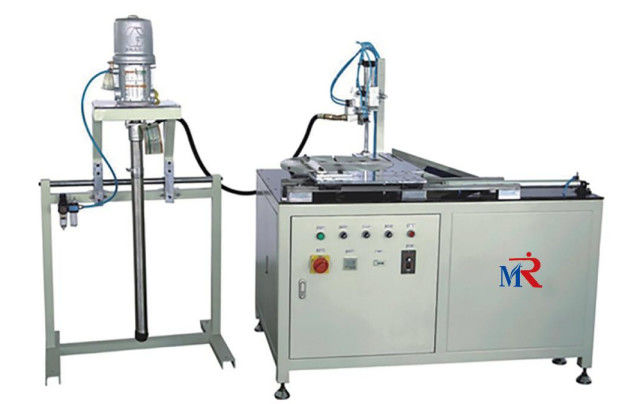

Truck Air Filter PVC Caps Gluing Machine



Technical Parameter



1. The outer diameter of the end cap:≤500mm
2. Gluing width:≤50mm
3. Viscidity:≤50000CP
4. Suitable adhesives:PVC filter adhesive(high temperature solidified adhesive)
5. Production capability:4pcs/min
6. Power supply:220V/50Hz
7. Main machine power:500w
8. Working air pressure:0.6MPa
9. The air pressure of the gluing pump:≤0.45MPa
10. The working pressure of the gluing head:4MPa
11. M/C weight:300kg
12. M/C size:1405*950*1300mm (L*W*H)

Features

1. This machine can glue evenly with wide using range.

2. Using the double sealing modes, to make the nozzle break off glue thoroughly after gluing.

3. The auto mover system push the glued products into the production line automatically to avoid affecting the product quality while transferring.

4. Adopts the excellent import pump, ensure gluing accurately.

Applications

This machine is applied to dispense PVC on the end caps of the heavy duty air filter.
