Name: 1000mm Filter Paper Rotary Pleating Machine 220V / 380V Purifier Filter Type
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRTM-2
Availability: InStock

Home > products > Truck Air Filter Making Machine >

1000mm Filter Paper Rotary Pleating Machine 220V / 380V Purifier Filter Type

Paper Rotary Pleating Machine

1000mm Paper Pleating Machine

Filter Pleating Machine 220V

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRTM-2

Request A Quote

Product Details

Production Capacity:

500 Pieces/hour

Filter Type:

Purifier Filter

Voltage:

220V/380V

Power Source:

Electric

Warranty:

1 Year

Frequency:

50Hz

Highlight:

Paper Rotary Pleating Machine

1000mm Paper Pleating Machine

Filter Pleating Machine 220V

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

380V Truck Air Filter Paper Machine 50Hz With PLC Control System

Get Best Price

Video

600mm Automatic Truck Air Filter Making Machine Expanded Metal Mesh Machine

Get Best Price

Video

Full Auto Air Filter Spiral Machine 120mm - 420mm With Metal Strips

Get Best Price

Video

1000mm Filter Mesh Welding Machine 220V Electric Power Source

Get Best Price

Contact Now

Product Description

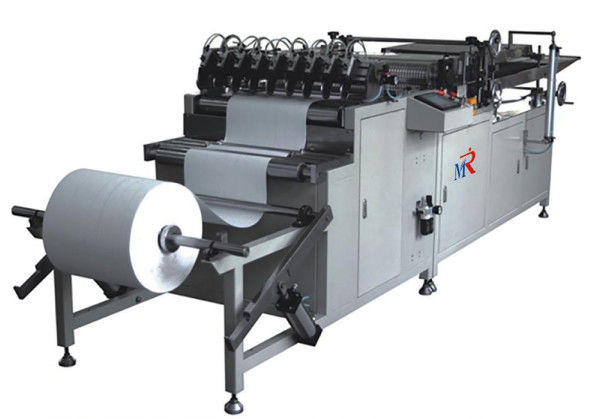

1000mm Filter Paper Rotary Pleating Machine
Technical Parameter

1. Product capability	0-35m/min
2. Max width	1000mm
3. Min width	30mm
4. Max pleat height	60mm
5. Min pleat height	12mm
6. Customize the rollers sizes
7. Temp. control	0-300℃
8. Main power	12kw
9. Working air pressure	0.6MPA
10. Power supply	380V/50HZ
11. M/C weight	1200kg
12. M/C dimension	5200mm1400mm1170mm

Consists
1. Auto Paper de-coil
2. Paper pre-slitting machine
3. Pre-heating device before pleating
4. Auto counter
5. Water steam device
6. Rollers marking machine
7. Roller and gear collecting machine
8. Pleated paper heat forming and conveyer device

Features:

1. The pre-slitter uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.

2. This machine equips the pre-heating and water steam device to prevent the paper breaking when roller marking,

3. This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.

4. The rollers can be made with bubbled type or the pleat-lock type, which is used to maintenance the certain distance between two pleats.

5. This high automatic machine has the process of the auto counting, pleating pre-heating and forming

1000mm Filter Paper Rotary Pleating Machine 220V / 380V Purifier Filter Type 0

1000mm Filter Paper Rotary Pleating Machine 220V / 380V Purifier Filter Type 1
