Full Auto Air Filter Spiral Machine 120mm - 420mm With Metal Strips

Full Auto Air Filter Spiral Machine 120mm - 420mm With Metal Strips

Full Auto Air Filter Spiral Machine

Air Filter Spiral Machine 120mm

Place of Origin:

China

Brand Name:

MOER

Certification:

CE

Model Number:

JSMRTM-2

Contact Us
Request A Quote
Full Auto Air Filter Spiral Machine 120mm - 420mm With Metal Strips
Full Auto Air Filter Spiral Machine 120mm - 420mm With Metal Strips
Product Details
Production Capacity:
500 Pieces/hour
Filter Type:
Purifier Filter
Voltage:
220V/380V
Power Source:
Electric
Warranty:
1 Year
Frequency:
50Hz
Highlight:

Full Auto Air Filter Spiral Machine

,

Air Filter Spiral Machine 120mm

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiate
Packaging Details
plywood cases
Delivery Time
30-45days
Payment Terms
L/C,T/T
RELATED PRODUCTS
Good price 380V Truck Air Filter Paper Machine 50Hz With PLC Control System online Video

380V Truck Air Filter Paper Machine 50Hz With PLC Control System

Get Best Price
Good price 600mm Automatic Truck Air Filter Making Machine Expanded Metal Mesh Machine online Video

600mm Automatic Truck Air Filter Making Machine Expanded Metal Mesh Machine

Get Best Price
Good price Full Auto Air Filter Spiral Machine 120mm - 420mm With Metal Strips online Video

Full Auto Air Filter Spiral Machine 120mm - 420mm With Metal Strips

Get Best Price
Good price 1000mm Filter Mesh Welding Machine 220V Electric Power Source online Video

1000mm Filter Mesh Welding Machine 220V Electric Power Source

Get Best Price
Contact Us
Contact Now
Product Description

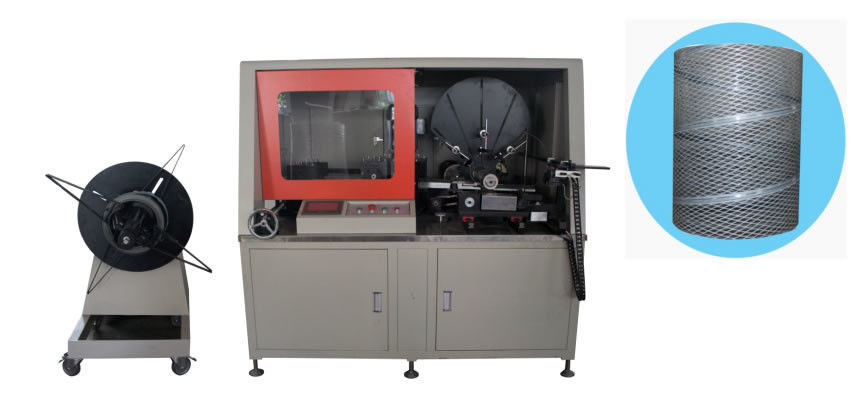

φ120mm- φ420mm Full Auto Air Filter Spiral Machine with Metal Strips

Technical Parameter


 Tube   Diameter

φ120mm- φ420mm

Production   Capacity

  about 13m/ min

Tube   Length

  adjustable

 Metal   Strip Material

anti-fingerprint/ galvanized steel

Steel   Strip Thickness

 0.4mm

 Steel Strip Width

67mm

Expanded Metal Width

120mm

Motor Power

4.5KW

Machine Power Supply

 380V/50HZ

Air Pressure

0.6Mpa

 Machine Weight

1200KG

 chi Size

1800mm*1100mm*1350mm


Features:


1. This Air Filter Spiral Machine is used to produce the inner and outer mesh tube for heavy duty air filters directly from metal strips to tubes.

2. The metal strip will be expanded and flattened before spiral lock-seamed process.

3. It combines the traditional expanded mesh making machine, mesh flattening machine, spot welding machine and spiral tube making machine into one unit.

4. This Air Filter Spiral Machine is easy operation.

5.  The diameters are controlled by metal strips, no need change mould for different diameters. It will save time and cost

6. The metal tube length can be cut accordingly.
