Name: Full Auto 700mm Purifier Filter Making Machine PP Intermittent Gluing Machine
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRPP-700
Availability: InStock

Home > products > Purifier Filter Making Machine >

Full Auto 700mm Purifier Filter Making Machine PP Intermittent Gluing Machine

Full Auto Purifier Filter Making Machine

700mm Purifier Filter Making Machine

700mm Intermittent Gluing Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRPP-700

Request A Quote

Product Details

Production Capacity:

500 Pieces/hour

Filter Type:

Purifier Filter

Voltage:

220V/380V

Power Source:

Electric

Warranty:

1 Year

Frequency:

50Hz

Highlight:

Full Auto Purifier Filter Making Machine

700mm Purifier Filter Making Machine

700mm Intermittent Gluing Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

Servo Motors CNC Purifier Filter Making Machine 1050mm Width Knife Pleating Machine

Get Best Price

Video

4 Station Air Filter Strips Cutting Machine 8KW 50mm - 400mm Width

Get Best Price

Video

1600KG Vertical PP Air Filter Injection Moulding Machine

Get Best Price

Video

CNC Control Knife Pleating Machine 1050mm Width 220V / 380V 50Hz

Get Best Price

Contact Now

Product Description

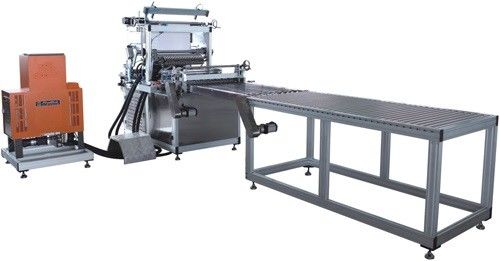

700mm Purify Air Filter Full-auto PP Intermittent Gluing Machine

Technical Parameter

Max. width	700mm
Adjustable pleating height	10~80mm
Speed	4~25m/min
The interval of gluing	25.4mm
The number of gluing	2*24Lines
Power supply	380V/50Hz
of the machine	20kw
Working air pressure	0.6MPa
M/C weight	700kg
Hot melt M/C dimension	8508001165mm(LWH)
Main M/C dimension	500013001720mm(LWH)

Features:

1.Both the fiber glass pleating and hot melt dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system, so to fast drying the hot melt and cut any length.

2.The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.

3.The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.

4.This machine equips the cutting and trimming device, which is used to meet different filter specifications.

5.This production line is stainless steel obey and aluminum frame, which is strong ,nice and long life.

6.Six sets of the rollers circling placed on one machine, which is easily to be changed and to meet different specifications.

7.The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.

8.High productive efficiency and good smoothness.

9.Furthermore, we can customize the paper-pleating production line of different specifications.

Full Auto 700mm Purifier Filter Making Machine PP Intermittent Gluing Machine 0

Full Auto 700mm Purifier Filter Making Machine PP Intermittent Gluing Machine 1

Full Auto 700mm Purifier Filter Making Machine PP Intermittent Gluing Machine 2

Full Auto 700mm Purifier Filter Making Machine PP Intermittent Gluing Machine 3
