Name: Spin On Oil Filter Spiral Center Tube Making Machine 3KW Electric Power Source
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRJY-75
Availability: InStock

Home > products > Spin On Oil Filter Making Machine >

Spin On Oil Filter Spiral Center Tube Making Machine 3KW Electric Power Source

Spiral Center Tube Making Machine Electric

Spiral Center Tube Making Machine 3KW

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRJY-75

Request A Quote

Product Details

Production Capacity:

1500 Pieces/hour

Filter Type:

Oil Filter

Voltage:

220V/380V

Power Source:

Electric

Warranty:

1 Year

Frequency:

50Hz

Highlight:

Spiral Center Tube Making Machine Electric

Spiral Center Tube Making Machine 3KW

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

30 PCS/Min Filter Plastic Film Packaging Machine PLC Control System

Get Best Price

Height 80 - 350mm Spin On Oil Filter Making Machine Full Auto Seaming Machine

Get Best Price

Video

Servo Motors Controlled Knife Pleating Machine 650mm Width PLC Control System

Get Best Price

Video

Full Auto Spin On Oil Filter Silk Printing Machine Electric Power Source

Get Best Price

Contact Now

Product Description

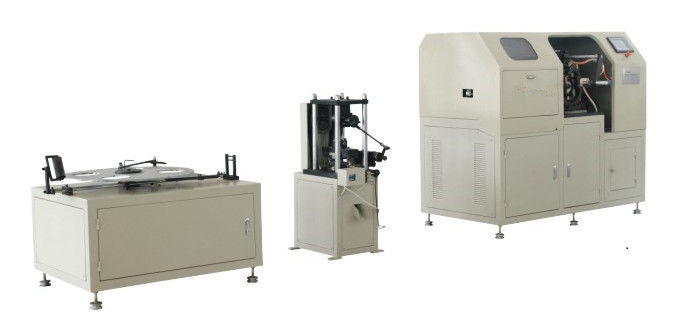

Spin- On Oil Filter Spiral Center Tube Making Machine

Technical Parameter

1. Product capacity 20-35pc/min	20-35pc/min
2. Diameter of center tube	￠60-￠250mm
3. Length of center to be processed	freely
4. Steel-plate thickness	0.25-0.8mm
5. Motor power	3kw
6. Power supply	415V/50HZ
7. Working air pressure	0.6Mpa
8. M/C weight	800KG
9. M/C size	1600 * 800 * 1240mm (L * W * H)

Applications

1. Spin- On Oil Filter Spiral Center Tube Making Machine can easily change the diameter of screw tube in a short time.

2. Cut the needed length according to what the customers’ specification

3. Clutch can be adjusted according to different thickness of the steel strip.

4. The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.

5. Adopts hydraulic pressure drive which has strong power and good stability

6. perforated machine 600x600x1200 weight 200Kg
