AG-461E Digital Automated Filter Tester Paper Air Permeability Tester 50Hz

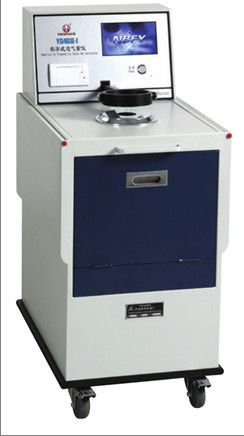

AG-461E Digital Air Permeability Paper Tester

1. Welcome to use the products of JIANGSU MOER INTELLIGENT EQUIPMENT CO.,LTD is one of the domestic enterprises specialized in manufacturing filter equipment, equipped with a professional design and manufacturing team, excellent equipment and considerate service. We hope that our equipment can help you produce high-quality products, and your satisfaction is our eternal pursuit.
2. JSMRGF-100 series seaming machines adopt the control combining electricity and gas. The feeding movements of the first set of rollers (two rollers) and the second set of rollers (two rollers) are completed by the movements of two cams. The cylinder completes the feeding movement of the cam rollers at one time according to the preset program for feeding and discharging workpieces. The material used for the can seaming rollers is Cr12MoV. It has high hardness after quenching, good wear resistance and an increased service life. This machine is used for sealing the outer shells of spin-on oil filters and diesel filters with the sealing fixing plates.
3. Before installing and using this equipment, please read the operation manual carefully. It contains relevant contents in multiple aspects such as installation, use, maintenance and repair. Operating in accordance with the methods required in the manual can avoid some unnecessary troubles and losses caused by incorrect operations.

Technical Parameter

Applications:

It is used to detect air permeability property of textiles, non-woven, industrial filter cloth (paper), microporous membrane, polyester mesh, sponge foam, non-woven fabrics, coated fabrics and other breathable leather, plastics and other chemical products.

Standards:

ISO 9237, ASTM D737, ASTM D3574, ISO4638, GB/T10655, ISO 5636-5, BS 5636, DIN 53887, EN ISO 9237, WSP 70.1, ASTM D 3574, EN ISO 7231, JIS L 1096-A, TAPPI T 251, WSP 70.1

Features

1. Full test scale, automatic detection permeability tests of various specimens.

2. Mirco-computer automatic control, fast test within 30s.

3. Program supported language:  English LCD display and English software.

4. Data port: RS232 printout interface and computer controlled interface.

5. Adopt imported pressure sensor, to ensure accuracy of the data collected.

6. Units of measure: mm/s, L/㎡/s, ft3/ft2/min, cm³/cm²/s, m³/m²/min, m³/m²/h, Pa (pressure drop).

7. Computer control software, real-time display test curve and statistical analysis data, calculate maximum, minimum, average and CV value.

7. Can be locked using universal pulley, easy to move.

8. Use a retractable working bench, to facilitate the work, does not occupy space.
