Name: PLC Control ECO Filter Making Machine 600mm Filter Paper Rotary Pleating Machine
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRGT-600
Availability: InStock

Home > products > ECO Filter Making Machine >

PLC Control ECO Filter Making Machine 600mm Filter Paper Rotary Pleating Machine

PLC Control ECO Filter Making Machine

ECO Filter Making Machine 600mm

Paper Rotary Pleating Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRGT-600

Request A Quote

Product Details

Machine Width:

600mm

Control System:

PLC

Pleating Height Range:

10-60mm

Production Capacity:

1000 Pieces/hour

Filter Type:

ECO Air Filter

Voltage:

220V/380V

Filter Efficiency:

99.97%

Power Source:

Electric

Material:

Metal Steel

Warranty:

1 Year

Frequency:

50Hz

Highlight:

PLC Control ECO Filter Making Machine

ECO Filter Making Machine 600mm

Paper Rotary Pleating Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

PLC Control 50Hz ECO Filter Making Machine 500mm Power Core Air Filter Making Machine

Get Best Price

Video

2 Station Filter Paper Hotmelt Clipping Machine 50Hz Frequency

Get Best Price

Video

Servo Motors Controlled Full Auto Knife Pleating Machine 650mm Width

Get Best Price

20W ECO Oil Filter Making Machine PLC Control Laser Marking Machine 220V / 380V

Get Best Price

Contact Now

Product Description

600mm Full-auto Filter Paper Rotary Pleating Machine

Technical Parameters:

1. Product capability	0-35m/min
2. Max width	600mm
3. Min width	30mm
4. Max pleat height	60mm
5. Min pleat height	12mm
6. Customize the rollers sizes
7. Temp. control	0-300℃
8. Main power	12kw
9. Working air pressure	0.6MPA
10. Power supply	380V/50HZ
11. M/C weight	800kg
12. M/C dimension	3200mm1400mm1170mm

Features:

1. ECO Air Filter Pleating Production Line is combind by auto paper de-coiler, paper pre-slitting , pre-heating device before pleating, auto counter, water steam device, rollers marking , roller and gear collecting device, pleated paper heat forming and conveyer device.

2. The operating system of this production line adopts touch screen interface, which makes operation intuitive and simple and more convenient.

3. The working speed can be controlled by frequency converter, which can meet the needs of different situations.

4. The automatic feeding device is not only simple and convenient to operate, but also greatly reduces the manual labor of the operator. Imported cutting knife with flat face and no edge. Heating and humidifying mechanism enhances the toughness of filter paper, so that filter paper is not easily broken when roller roll marks.

5. Automatic counting, according to the filter length of the filter paper to make a good mark, making the eparation of filter elements more simple and convenient.

6. The roller roll marks and drum not only work fast, but also have high dimension accuracy and no noise.

7.The wave receiving and indentation are driven by the motor, so that the receiving and indentation are carried out synchronously and the speed is very consistent.

8. The heating setting mechanism makes the shape of the filter stable and not easily deformed.

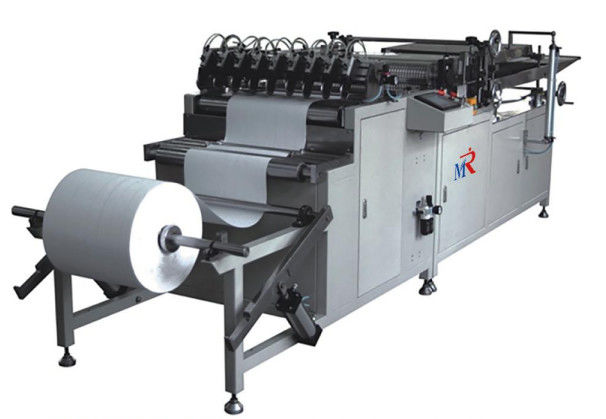

PLC Control ECO Filter Making Machine 600mm Filter Paper Rotary Pleating Machine 0

PLC Control ECO Filter Making Machine 600mm Filter Paper Rotary Pleating Machine 1

PLC Control ECO Filter Making Machine 600mm Filter Paper Rotary Pleating Machine 2
