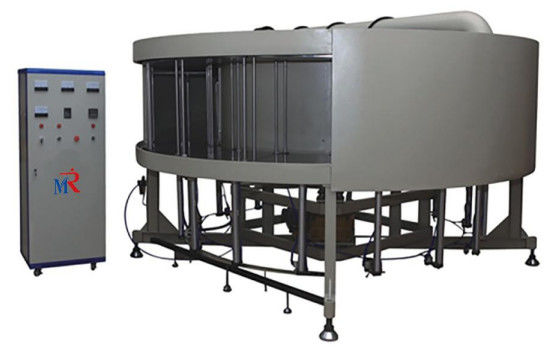

16-Station Truck Air Filter Turntable Curing Oven
Technical Parameter
|
1. Seal speed
|
180pcs/h
|
|
2. Filter height
|
500mm
|
|
3. Diameter range
|
Ф450mm
|
|
4. Motor power
|
32kw
|
|
5. working air pressure
|
0.6Mpa
|
|
6. Power supply
|
380v/50Hz
|
|
7. M/C dimension
|
3660*3660*1780(L*W*H)
|
Features:
1. The machine adopts the rotating disk drying, the machine cover an area of an area small, feeding and unloading material more convenient.
2. Product drying temperature can be arbitrary adjustment (room temperature to 300℃),conveying speed can be adjusted.
3. Product drying with constant temperature control fan.
4. Temperature Range:RT-250℃, adjustable, constant temperature, independent temperature control of each section;
5. Intelligent temperature controller, PID automatic calculation, LED display, with SCR power silicon controlled, can accurately control the precision of temperature;
6. The interior is made of high quality thermal insulation materials with good thermal insulation effect;
7. Internal hot air circulation, baking objects evenly heated;
8. Fast heating time, stable and accurate temperature;
9. Double over temperature protection, safe and reliable electrical control;
10. The conveyor belt is variable in speed, and the conveying speed is stable and adjustable;
11. The conveyor belt is equipped with anti-migration device, and the belt tightness can be adjusted;
12. Intelligent temperature controller, PID automatic calculation, LED display;
13. Domestic first-class heat insulation and heat breaking technology, remarkable sealing effect;
14. The shell temperature of the body is low, which has little influence on indoor ambient temperature;
15. Environmental protection, energy-saving, strong safety performance.
