Name: Bag Filter Galvanized Outer Frame Forming Machine 20L/min Power Consumption
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRTZ-50
Availability: InStock

Home > products > Pocket Filter Making Machine >

Bag Filter Galvanized Outer Frame Forming Machine 20L/min Power Consumption

Outer Frame Forming Machine

Bag Filter Forming Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRTZ-50

Request A Quote

Product Details

Production Capacity:

1000 Pieces/hour

Filter Type:

Pocket Filter

Voltage:

220V/380V

Power Source:

Electric

Warranty:

1 Year

Frequency:

50Hz

Highlight:

Outer Frame Forming Machine

Bag Filter Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

220V / 380V Pocket Filter Making Machine Electric Inner Frame Clinching Machine

Get Best Price

Video

Industrial Pocket Filter Making Machine 3KW Bag Filter Inner Frame Forming Machine

Get Best Price

Video

Electric Pocket Filter Making Machine 30 - 40 Times/Min Capacity

Get Best Price

Video

Bag Filter 3KW Ultrasonic Welding And Cutting Machine 0.6MPa Air Pressure

Get Best Price

Contact Now

Product Description

Bag Filter Galvanized Outer Frame Forming Machine

Technical Parameter

Speed	0-80pcs/h
Voltage	AC380/50HZ
Power	2.2KW
Size	6750x700x1500
Weight	800kg
Power Consumption	20L/min

Features:

1. Servo tracking cutting system.

Material of the cutting: Cr12Mov with quenched treatment. It can decide cut panel dimensions according to the hydraulic drive and PLC computer control system.

2. Material of the roller: High grade No.45 forged steel. Roller station: 12 rows Thickness of feeding material: 0.3-0.8mm

3. The gearbox transmission has smooth movement

4. Strong shock and vibration resistance

5. High transmission accuracy

6. DELTA PLC is adopted to organize all actions of the machine. The length of work piece is adjustable according to the setting of on the PLC.

7. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working.

8. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components.

And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.

9. The structure is stable, the material is strong, the appearance is beautiful, and it has the function of preventing material stripping.

While ensuring the normal operation of the machine, we have combined the problems of the original machine and added a baffle for the uncoiling part to prevent the raw material from falling off after the machine stops.

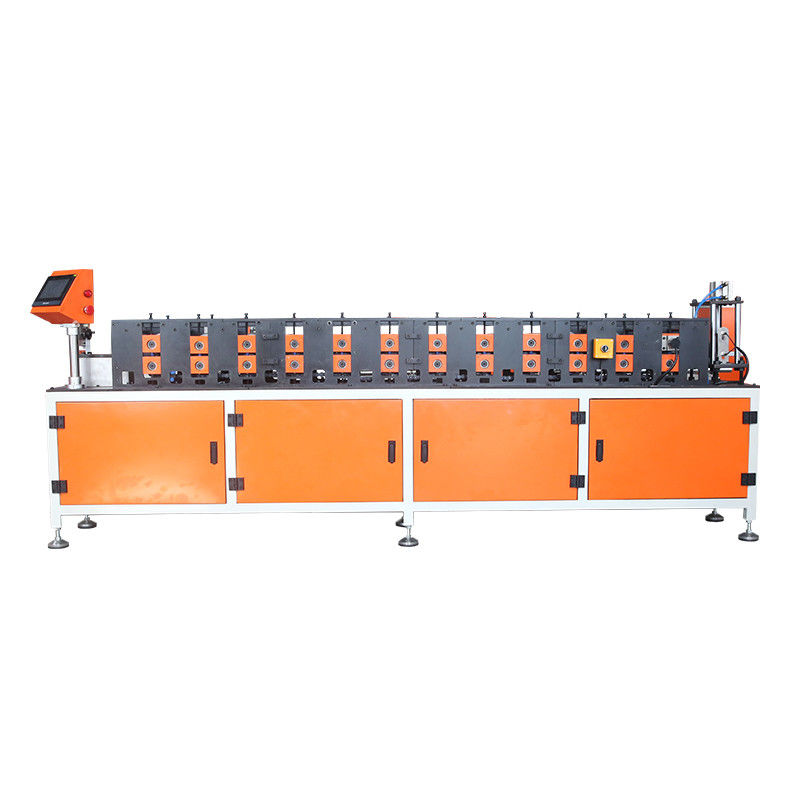

Bag Filter Galvanized Outer Frame Forming Machine 20L/min Power Consumption 0

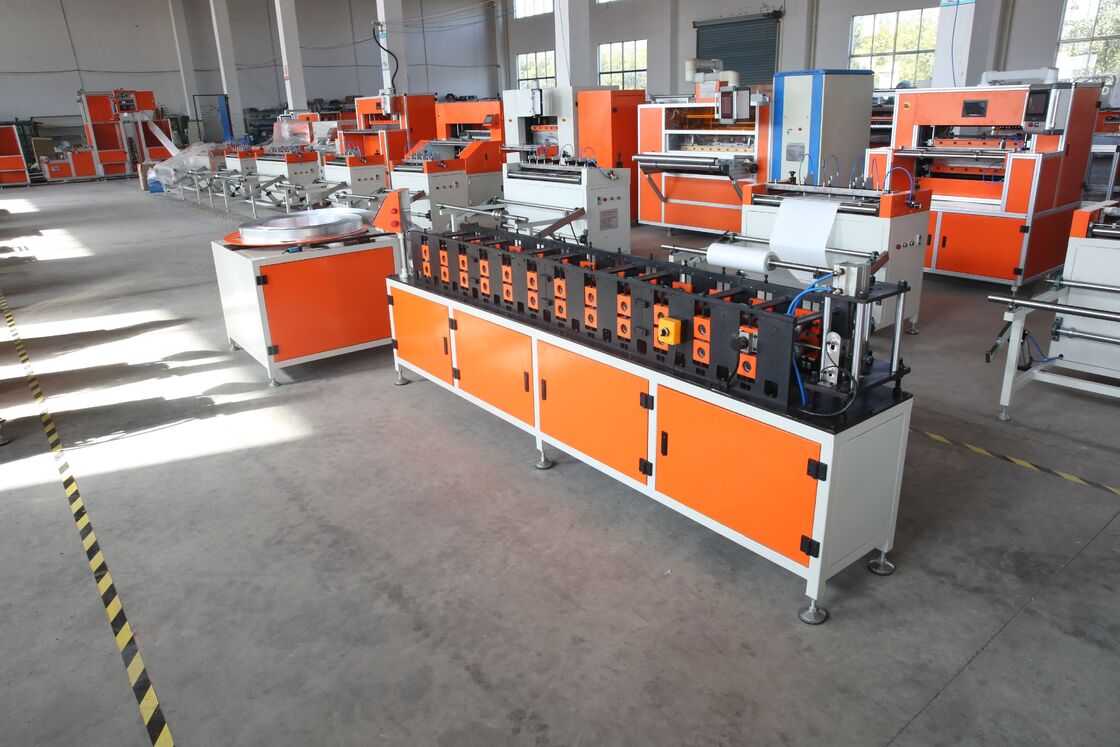

Bag Filter Galvanized Outer Frame Forming Machine 20L/min Power Consumption 1

Bag Filter Galvanized Outer Frame Forming Machine 20L/min Power Consumption 2

Bag Filter Galvanized Outer Frame Forming Machine 20L/min Power Consumption 3
