Name: Industrial Purifier Filter Making Machine 700mm Width CNC Knife Pleating Machine
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRCW-700-3
Availability: InStock

Home > products > Purifier Filter Making Machine >

Industrial Purifier Filter Making Machine 700mm Width CNC Knife Pleating Machine

Purifier Filter Making Machine 700mm

Industrial Purifier Filter Making Machine

700mm Knife Pleating Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRCW-700-3

Request A Quote

Product Details

Machine Width:

700 Mm

Control System:

PLC

Pleating Height Range:

3-60mm

Production Capacity:

1000 Pieces/hour

Filter Type:

Air Filter

Voltage:

220V/380V

Filter Efficiency:

99.97%

Power Source:

Electric

Material:

Metal Steel

Warranty:

1 Year

Frequency:

50Hz

Highlight:

Purifier Filter Making Machine 700mm

Industrial Purifier Filter Making Machine

700mm Knife Pleating Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

Servo Motors CNC Purifier Filter Making Machine 1050mm Width Knife Pleating Machine

Get Best Price

Video

4 Station Air Filter Strips Cutting Machine 8KW 50mm - 400mm Width

Get Best Price

Video

1600KG Vertical PP Air Filter Injection Moulding Machine

Get Best Price

Video

CNC Control Knife Pleating Machine 1050mm Width 220V / 380V 50Hz

Get Best Price

Contact Now

Product Description

700 mm Width Multilayers Paper Rack& CNC Knife Pleating Machine

(Suitable materials for pleating like: wooden paper, non-woven, P.P synthetic media, glass fiber, active carbon, mesh, and multi-layers pleating.)

Technical Parameters:

Max width	700mm
adjustable pleating height	3-60mm((Pleat depth can be changed automatically by CNC control)
Pleating speed	0-380pleats/min
Power supply	380V/220V/50hz
Motor power	3kw
Pre-heating power	10KW
Heating temp	normal-300℃
Working air pressure	0.6Mpa
M/C weight	850kg
M/C size	slitting 1400x1600x1400 (LWH)
4pcs customized brand servo motors

Features

1.Full-automatic pleating machine consists of 3-layer paper rack and pleating device.

2.The 3layers automatic paper feeding racks are equipped with inflatable shafts.

3.Each shaft can automatically feed the media under the power of its motor.

4.The automatic tension system in the front of the racks .

5.Different diameters and weights of media can be fed at the equal intervals.

6.The pleating is finished by the work of the upper and lower plates.

7.The pleating height can be adjusted via the touch screen.

8.The user can set different pleating heights. The pleats have precise sizes and smooth edges. It can finish the counting, pleating and heating processes automatically.

Applications
This production line is suitable for the automobile industry three, hydraulic industry, purification industry, the water treatment industry.

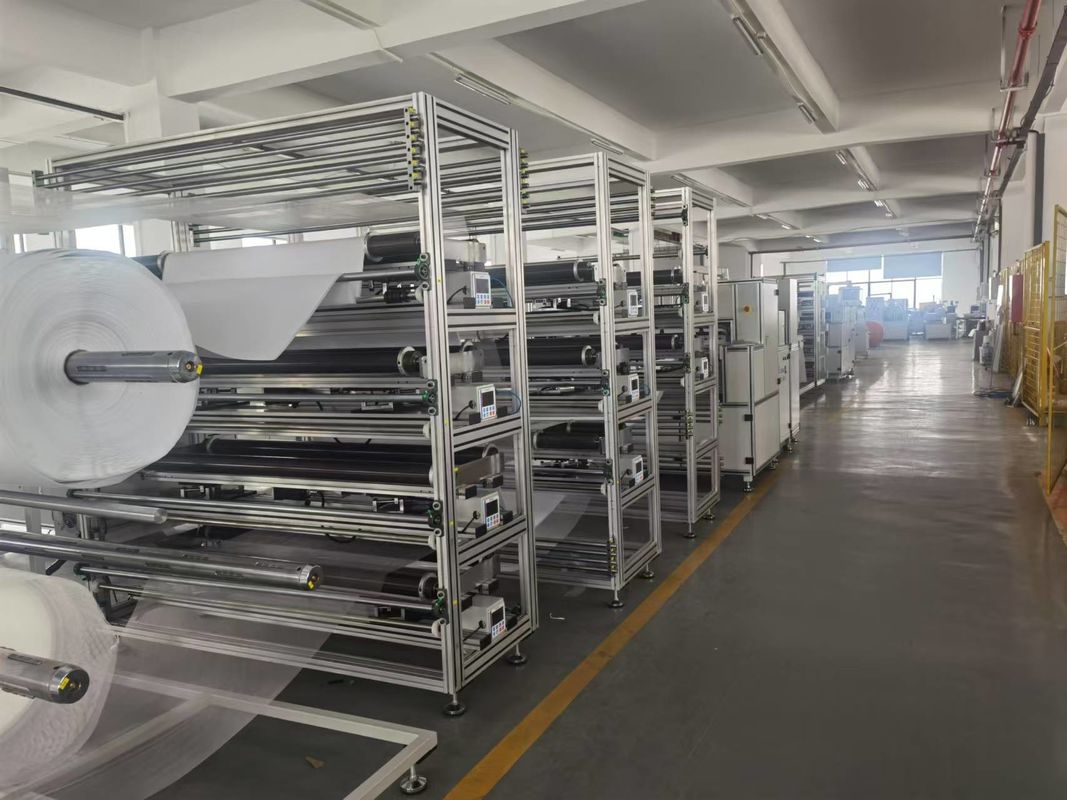

AQXFL-3-700 3-Layer Decoiler

1. Media Diameter: ≤700mm

2. Media Width: ≤700mm

3. Speed: 4-20M/min

4. Motor Power: 3.5KW

5. Voltage: 380V/60HZ

6. Air Pressure: 0.6Mpa

7. Machine Size: 1900*1300*1700mm

8. Machine Weight: 800kg

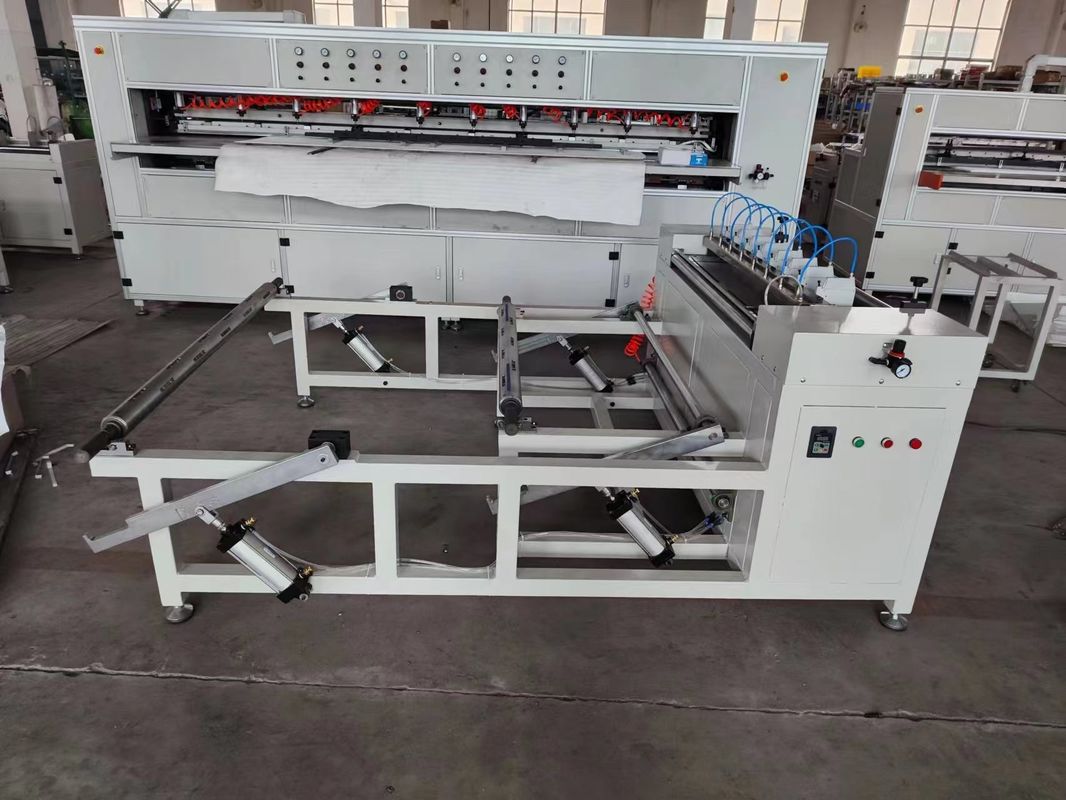

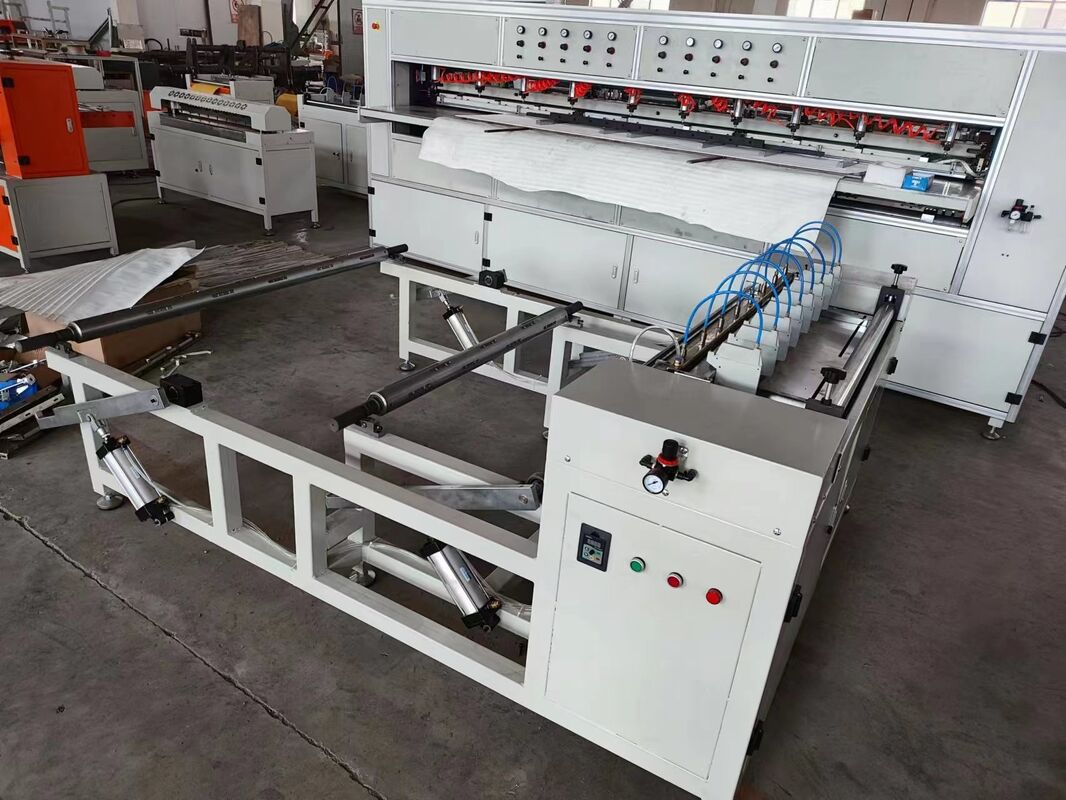

Industrial Purifier Filter Making Machine 700mm Width CNC Knife Pleating Machine 0

Industrial Purifier Filter Making Machine 700mm Width CNC Knife Pleating Machine 1

Industrial Purifier Filter Making Machine 700mm Width CNC Knife Pleating Machine 2
