Name: 3 Tanks Filter Caps PU Injection Machine 8KW 50Hz Frequency
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRPU-20F
Availability: InStock

Home > products > Air Filter Making Machine >

3 Tanks Filter Caps PU Injection Machine 8KW 50Hz Frequency

PU Injection Machine 50Hz

PU Injection Machine 8KW

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRPU-20F

Request A Quote

Product Details

Control System:

PLC

Production Capacity:

1000 Pieces/hour

Filter Type:

Air Filter

Voltage:

220V/380V

Filter Efficiency:

99.97%

Power Source:

Electric

Material:

Metal Steel

Warranty:

1 Year

Frequency:

50Hz

Highlight:

PU Injection Machine 50Hz

PU Injection Machine 8KW

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

380V Air Filter Making Machine PLC Control Industrial Hot Melt Gluing Machine

Get Best Price

Two Components Filter Material For PU Air Filter / PU Glue

Get Best Price

24 Stations PU Caps Heating Work Table 220V Electric Power Source

Get Best Price

Video

24 Stations PU Caps Heating Working Table 220V 50Hz 0 - 5M/min Adjustable

Get Best Price

Contact Now

Product Description

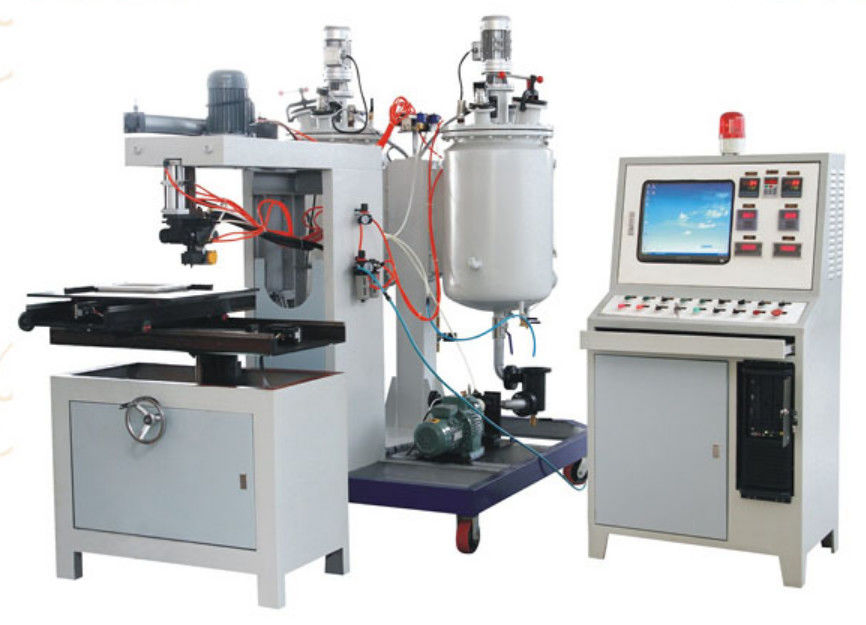

3 Tanks Filter Caps PU Injection Machine

(Suitable for PU panel air filter , PU round air filter.)

Technical Parameter

Overall Output	5-15g/s
Moving Speed	2-10m/min
Overall Power	8KW
Power Supply	380V/50HZ
M/C Weight	1000kg
M/C Size	150020002100
Design Mixture Ratio: A:B	100:25-35( customized)

Feature

1. Tank: stainless-steel tank of three-layer structure with stirring and automatic constant temperature reservation functions.

2. Pump: slow speed, high accurate flow control pump with precise actuating and display devices.

3. Nozzles: Featuring automatic three positions switching which includes pouring, flow inversing and flushing, without any advancing and lagging. The nozzle pneumatically dislocates after the pouring work and then the automatic flushing course starts through program control.

4. Workbench: The die set is positioned on the self governed all-around workbench afterwards round or square seal packs or seal pack with special figure would be automatically poured.

5. Control: The temperature, pressure and the extent of pouring would all be displayed digitally while controlled automatically. The workbench is operated in accordance with the requirements displayed from computer screen.

3 Tanks Filter Caps PU Injection Machine 8KW 50Hz Frequency 0

3 Tanks Filter Caps PU Injection Machine 8KW 50Hz Frequency 1

3 Tanks Filter Caps PU Injection Machine 8KW 50Hz Frequency 2
