Name: 1050mm Width Purifier Filter Making Machine 220V / 380V CNC Knife Pleating Machine
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRCW-1050-5
Availability: InStock

Home > products > Purifier Filter Making Machine >

1050mm Width Purifier Filter Making Machine 220V / 380V CNC Knife Pleating Machine

1050mm Purifier Filter Making Machine

Purifier Filter Making Machine 220V

1050mm CNC Knife Pleating Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRCW-1050-5

Request A Quote

Product Details

Machine Width:

1050mm

Control System:

PLC

Pleating Height Range:

3-70mm

Production Capacity:

1000 Pieces/hour

Filter Type:

Air Filter

Voltage:

220V/380V

Filter Efficiency:

99.97%

Power Source:

Electric

Material:

Metal Steel

Warranty:

1 Year

Frequency:

50Hz

Highlight:

1050mm Purifier Filter Making Machine

Purifier Filter Making Machine 220V

1050mm CNC Knife Pleating Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

Servo Motors CNC Purifier Filter Making Machine 1050mm Width Knife Pleating Machine

Get Best Price

Video

4 Station Air Filter Strips Cutting Machine 8KW 50mm - 400mm Width

Get Best Price

Video

1600KG Vertical PP Air Filter Injection Moulding Machine

Get Best Price

Video

CNC Control Knife Pleating Machine 1050mm Width 220V / 380V 50Hz

Get Best Price

Contact Now

Product Description

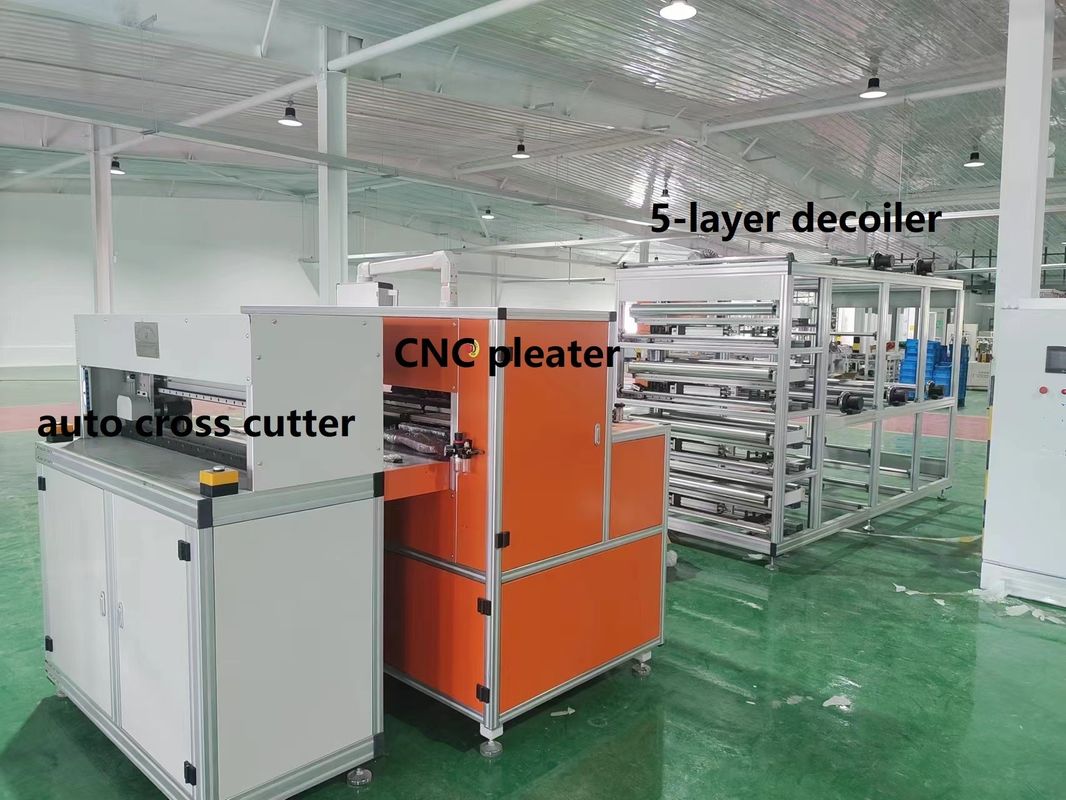

1050mm Width Multilayers Paper Rack& CNC Knife Pleating Machine &Cross Cutting Machine

Full-auto CNC knife paper pleating machine

(Suitable materials for pleating like: wooden paper, non-woven, P.P synthetic media, glass fiber, active carbon, mesh, and multi-layers pleating.)

Technical Parameters:

Max width	1050mm
adjustable pleating height	3-70mm((Pleat depth can be changed automatically by CNC control)
Pleating speed	0-400pleats/min
Power supply	380V/220V/50hz
Motor power	3kw
Pre-heating power	10KW
Heating temp	normal-300℃
Working air pressure	0.6Mpa
M/C weight	850kg
M/C size	slitting 1400x1600x1400 (LWH)
4pcs customized brand servo motors

Features
1.CNC Knife Pleating Machine adopts upper and lower knife alternatively perform folding, from the knife automatic adjustment by computer, can reach different fold higher requirements, accurate size.

2.In the paper folding machineCNC Knife Pleating Machine automatic dotting counter, folding processing and preheating and forming etc.

3.This CNC Knife Pleating Machine can also be folded all the different rules of fold change.

4.CNC Knife Pleating Machine of this machine can change any angle, ensure the folding does not damage any kind of filter material.

Applications
1050mm Width Multilayers Paper Rack& CNC Knife Pleating Machine &Cross Cutting Machine is suitable for the automobile industry three, hydraulic industry, purification industry, the water treatment industry.

AQXFL-5-1050 5-Layer Decoiler

1. Media Diameter: ≤1050mm

2. Media Width: ≤1050mm

3. Speed: 4-20M/min

4. Motor Power: 3.5KW

5. Voltage: 380V/60HZ

6. Air Pressure: 0.6Mpa

7. Machine Size: 1900*1300*1700mm

8. Machine Weight: 900kg

AQXHQ-1050 Full-automatic Cross Cutting Machine

1. Media Width: ≤1050mm

2. Speed: 5-20pcs/min

3. Air Pressure: 0.6Mpa

4. Machine Size: 1350*500*1280mm

5. Machine Weight: 100kg

1050mm Width Purifier Filter Making Machine 220V / 380V CNC Knife Pleating Machine 0

1050mm Width Purifier Filter Making Machine 220V / 380V CNC Knife Pleating Machine 1

1050mm Width Purifier Filter Making Machine 220V / 380V CNC Knife Pleating Machine 2
