Name: Polyurethane Air Filter Making Machine 380V / 220V Pleating And Gluing Machine
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRPG-350-II
Availability: InStock

Home > products > Air Filter Making Machine >

Polyurethane Air Filter Making Machine 380V / 220V Pleating And Gluing Machine

Polyurethane Air Filter Making Machine

Air Filter Making Machine 380V

220V Pleating And Gluing Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRPG-350-II

Request A Quote

Product Details

Production Capacity:

300 Pieces/hour

Filter Type:

PU Panel

Voltage:

220V/380V

Power Source:

Electric

Material:

Paper

Warranty:

1 Year

Frequency:

50Hz

Highlight:

Polyurethane Air Filter Making Machine

Air Filter Making Machine 380V

220V Pleating And Gluing Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

380V Air Filter Making Machine PLC Control Industrial Hot Melt Gluing Machine

Get Best Price

Two Components Filter Material For PU Air Filter / PU Glue

Get Best Price

24 Stations PU Caps Heating Work Table 220V Electric Power Source

Get Best Price

Video

24 Stations PU Caps Heating Working Table 220V 50Hz 0 - 5M/min Adjustable

Get Best Price

Contact Now

Product Description

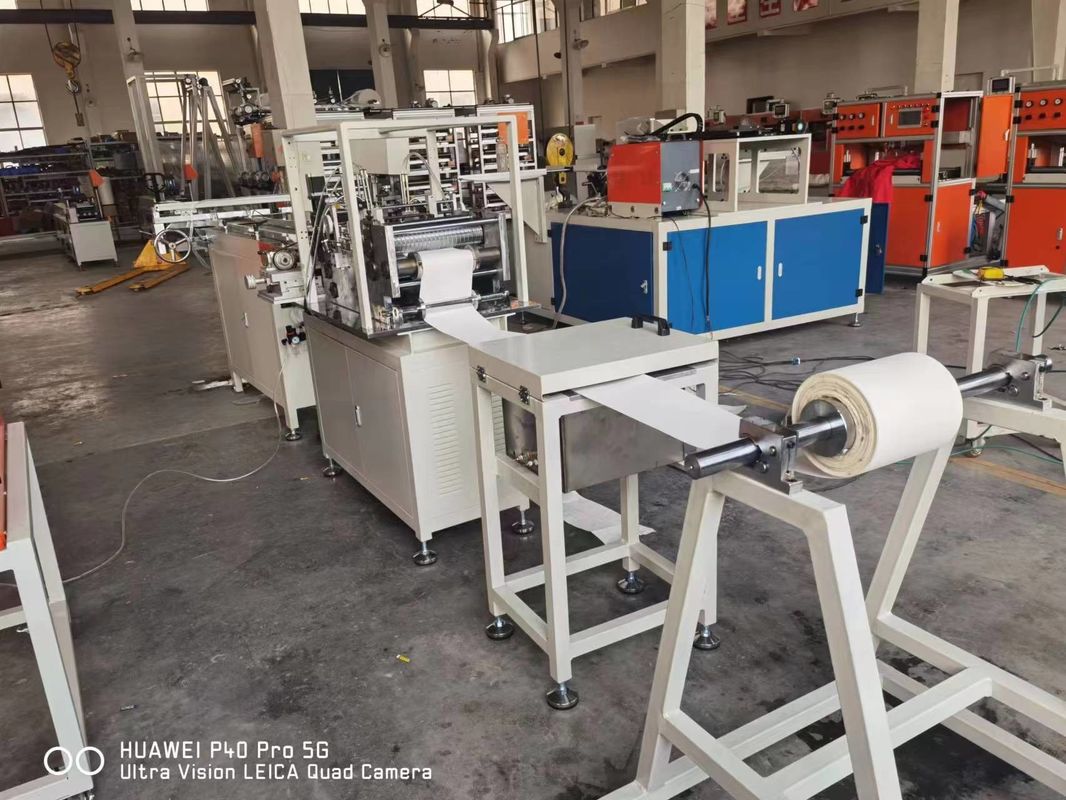

380V/220V Width Polyurethane Air Filters Pleating and Gluing Machine

Consists

1. Paper de-coiler

2. Heater

3. Water steam device

4. Pleating machine

5. Hot-melt unit

6. Belt conveyer

7. Automatic counting

Technical Parameters:

Width	90mm-320mm
Pleating Height	20-58mm
Speed	5-25m/min (adjustable)
Temperature Range	0-300℃
Heater Power	8.5KW
Transmission Power of Pleater	0.75KW
Conveyer Belt Transmission Power	0.25kw
Working Air Pressure	0.6Mpa
Power Supply	380V/50HZ
M/C Weight	1100KG
M/C Size:	75009501750

Features

1.Both the work speed of the machine and transmission speed of conveyer belt are controlled by computer, and can be easily adjusted.

2.Both impression and bubble formation are finished on the identical pairs of rollers with high precision.

3.The temperature can be predetermined in accordance with the requirement of the technological process. When the pleating machine runs and the heater will start to work automatically.

4.It adopts the water steam device, which is advantageous to prevent the paper from breaking when it is marked by rollers.

5.Melt quickly, the glue dispensing quantity can be easily controlled by frequency converter.

6.Set pressure control unit in glue feeding circuit to ensure the circuit safety.

7.Both the rubber hose and nozzle are independently temperature controlled, and easy to operate.

Applications

It is technically used to manufacturing the car panel filter.
