Name: Continuous Purifier Filter Strips Hotmelt Bonding Machine 400mm Width
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRTB-400
Availability: InStock

Home > products > Purifier Filter Making Machine >

Continuous Purifier Filter Strips Hotmelt Bonding Machine 400mm Width

Continuous Hotmelt Bonding Machine

Hotmelt Bonding Machine 400mm

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRTB-400

Request A Quote

Product Details

Control System:

PLC

Pleating Height Range:

15-55mm

Production Capacity:

1000 Pieces/hour

Filter Type:

Cabin

Voltage:

220V/380V

Filter Efficiency:

99.97%

Power Source:

Electric

Material:

Metal Steel

Warranty:

1 Year

Frequency:

50Hz

Highlight:

Continuous Hotmelt Bonding Machine

Hotmelt Bonding Machine 400mm

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

Servo Motors CNC Purifier Filter Making Machine 1050mm Width Knife Pleating Machine

Get Best Price

Video

4 Station Air Filter Strips Cutting Machine 8KW 50mm - 400mm Width

Get Best Price

Video

1600KG Vertical PP Air Filter Injection Moulding Machine

Get Best Price

Video

CNC Control Knife Pleating Machine 1050mm Width 220V / 380V 50Hz

Get Best Price

Contact Now

Product Description

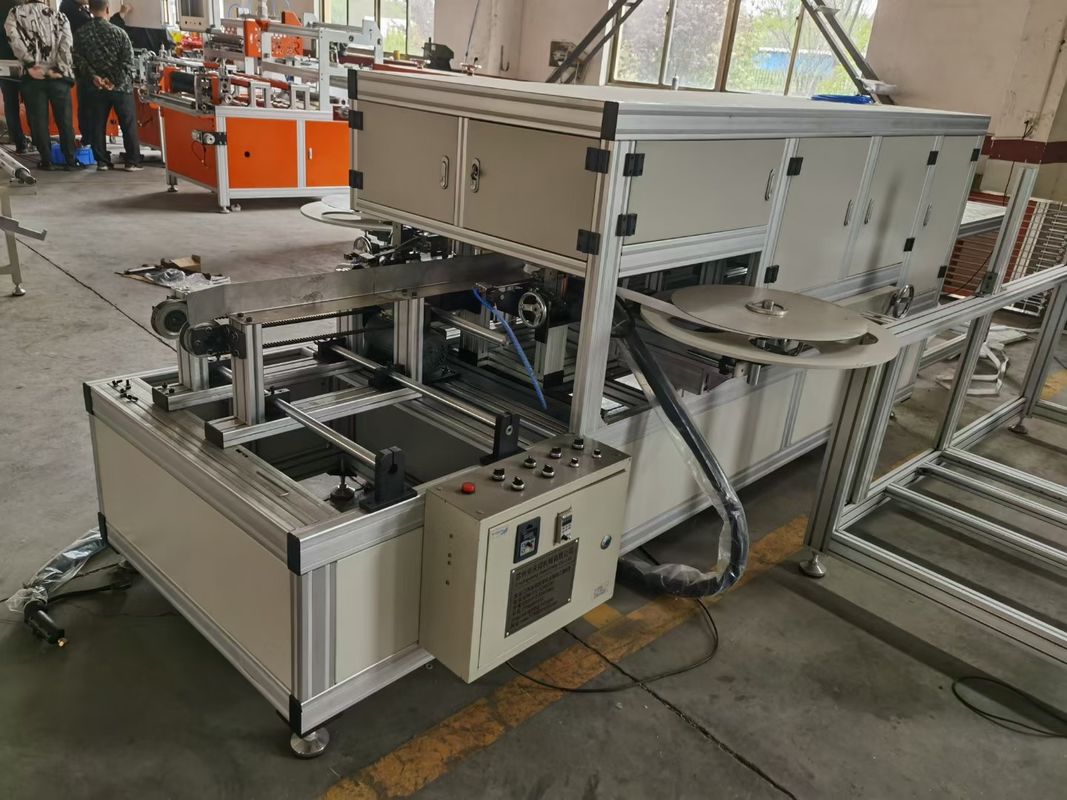

400mm Width Continuous Purifier Filter Strips Hotmelt Bonding Machine

Technical Parameters:

Product height	15-55mm
Product width	50-400mm
Output of the machine	8kw
Working air pressure	0.6Mpa
Power supply	380v/50Hz
Hotmelt Tank	20L
M/C weight	700kg
M/C Size	2500mm1000mm1150mm

Applications:

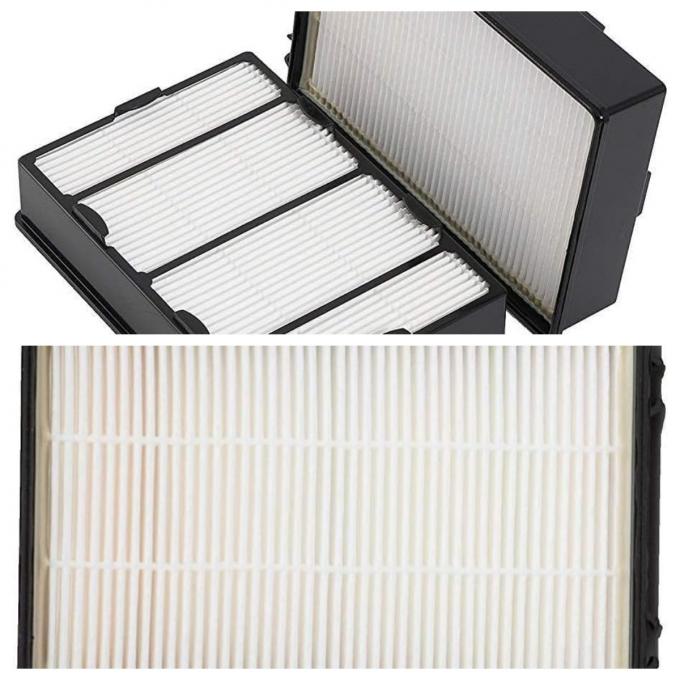

1. This Continuous Purifier Filter Strips Hotmelt Bonding Machine is used in edge banding process for the rectangular filter element. Use continuous feeding edge band and continuous spray of het melt to achieve automatic edge banding. and the operator can complete the edge banding. The outlet is equipped with automatic detecting and cutting between filters. It has the characteristic of easy operation, high precision and stable high productivity.

2. Process description:

Place the filter into mould and push into the edge banding machine > automatic edge banding and cooling and high resolution, printing>automatically cutting> take out the filter

3. Hotmelt Applicators 20 L, with adjustable gun x 2pcs, hose 2pcs. The edge band of the main line can be adjustable by two synchronized screw system, use grating scale to measure the width of edge banding system and display on the digital gauge.

4. The main line is driven by multiple ball spline shafts, stable and reliable transmission, and adjustable width of on the line.

5. The air cooling device is arranged above the conveyor line of the filter element.

6. The edge band paste position can be fine adjusted up and down.

7. Glue gun open and close automatically with the line status, precision and fluctuation of glue with less than 0.5mm.

8. Equipped with circular knife on-line rough cutting function, automatically cut off the ege band in the middle of the interval between two filter elements.
