Name: 10 - 100mm Depth Purifier Filter Making Machine Pleating And Hotmelt Gluing Machine
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRPW-1000
Availability: InStock

Home > products > Purifier Filter Making Machine >

10 - 100mm Depth Purifier Filter Making Machine Pleating And Hotmelt Gluing Machine

100mm Purifier Filter Making Machine

10mm Purifier Filter Making Machine

Hotmelt Gluing Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRPW-1000

Request A Quote

Product Details

Machine Width:

1000mm

The Number Of The Nozzles:

2x35pcs

Control System:

PLC

Pleating Height Range:

10-100mm

Production Capacity:

1000 Pieces/hour

Filter Type:

HEPA

Voltage:

220V/380V

Filter Efficiency:

99.97%

Power Source:

Electric

Material:

Metal Steel

Warranty:

1 Year

Frequency:

50Hz

Highlight:

100mm Purifier Filter Making Machine

10mm Purifier Filter Making Machine

Hotmelt Gluing Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

30-45days

Payment Terms

L/C,T/T

Servo Motors CNC Purifier Filter Making Machine 1050mm Width Knife Pleating Machine

Get Best Price

Video

4 Station Air Filter Strips Cutting Machine 8KW 50mm - 400mm Width

Get Best Price

Video

1600KG Vertical PP Air Filter Injection Moulding Machine

Get Best Price

Video

CNC Control Knife Pleating Machine 1050mm Width 220V / 380V 50Hz

Get Best Price

Contact Now

Product Description

10-100mm Depth Purifier Filter Pleating and Hotmelt Gluing Machine

Technical Parameters:

1. Max Width	1000mm
2. Pleating Height Range	10-100mm
3. Product Speed:	15m/min
4. The Interval of Gluing	25.4mm
5. The Number of Gluing Nozzles	2x35 lines
6Power Supply:	380V/50HZ
7. Main Power	18kw
8. Working Air Pressure	0.6Mpa
9.M/C Weight	900kg
10.Hot melt M/C Dimension	900x1000x1500
11.Main M/C Dimension	7500mm1050mm1500mm

Features:

1. Perfect design and reliable components ensure the high quality and excellent performance.
2. The whole machine is automatic control of with CNC system.
3. Touch screen operation. It’s very easy and Friendly for operator.
4. The machine is so steady that can ensure the high quality of the produced filter.

Applications:

1. Air Filter Pleating and Gluing Machine with PLC+ touch screen to control

2 .pleating height from 16-100mm by servo motor, one roller set for any height, pleat pitch from 1-10mm

3. Machine Hotmelt Gun Individual Control. each nozzle is individual control.

4. The machine Variable Hotmelt Bead Length/Pattern controlled in Touch Screen.

5. Strengthened Heat Treatment (QPQ)& Coating for Metal Parts

6. Machine with Air Lift System for Media Roll Mount.

7. Media Roll Fixing is done by air shaft

8. Media Tension Control by Powder Brake System

9. The machine is installed Air Chucking of Feeding Roller Up & Down Control

10. Strengthened Air cooling to both sides of media for fixing correct pitch.

11. The function and quality of our machine is similar Korea machine

12. 2 rollers machine can fold smaller pleats height better, eg: 14mm and 16mm

13. Stability is better than 1 roller machine

14. Two rollers machine can adjust the paper skewing on touch screen, one roller machine adjusting it by roller set

15. Revised two roller machine for intermittence gluing is better, as the valve functions are better than before.

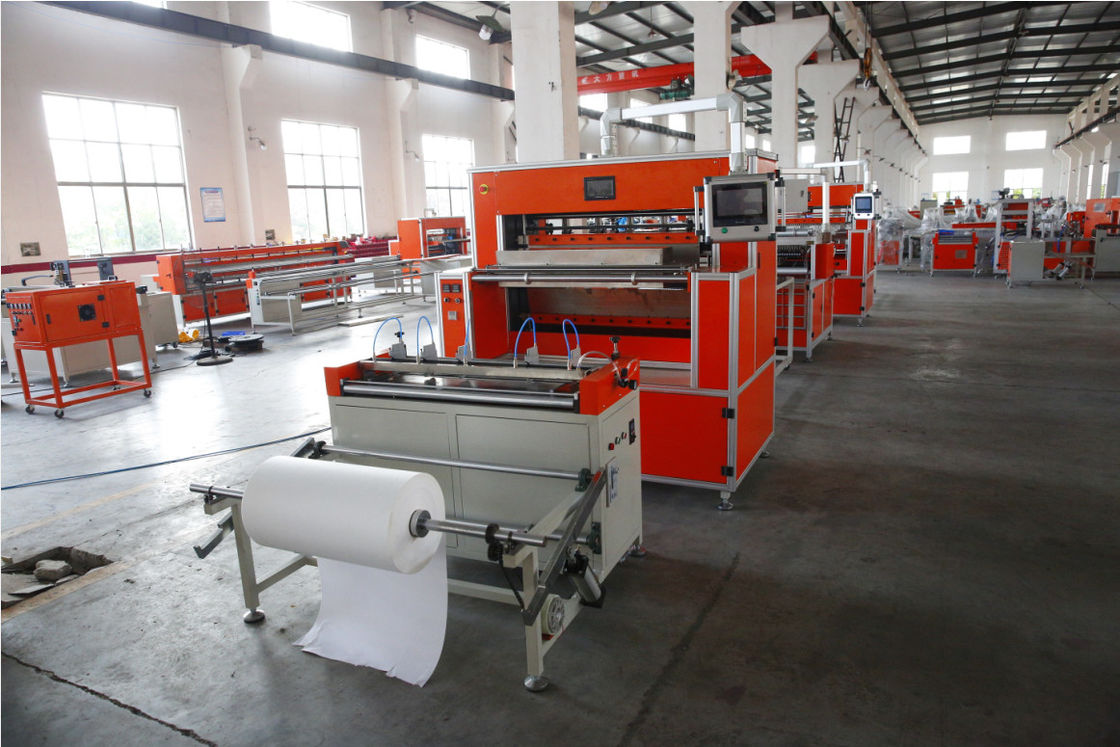

10 - 100mm Depth Purifier Filter Making Machine Pleating And Hotmelt Gluing Machine 0

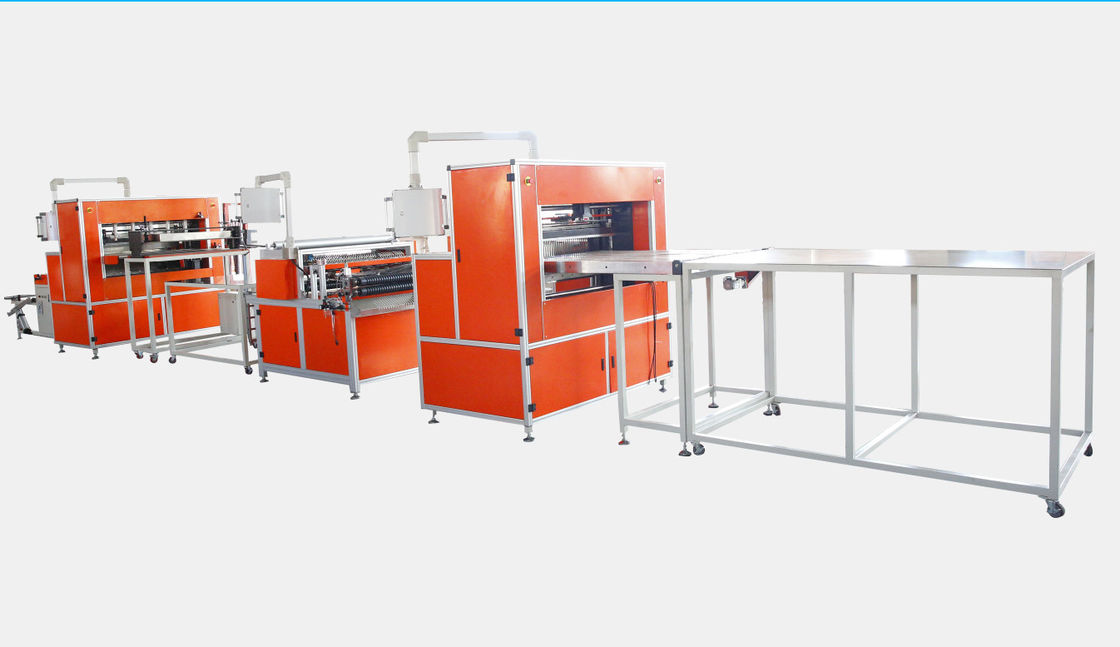

10 - 100mm Depth Purifier Filter Making Machine Pleating And Hotmelt Gluing Machine 1
