Name: PLC Control HVAC Filter Making Machine 800mm Width Panel Knife Pleating Machine
Brand: JIANGSU MOER INTELLIGENT EQUIPMENT CO.，LTD
SKU: JSMRKS6-700
Availability: InStock

Home > products > HVAC Filter Making Machine >

PLC Control HVAC Filter Making Machine 800mm Width Panel Knife Pleating Machine

HVAC Filter Making Machine

PLC Control HVAC Filter Making Machine

800mm Knife Pleating Machine

Place of Origin:

China

Brand Name:

MOER

Certification:

Model Number:

JSMRKS6-700

Request A Quote

Product Details

Control System:

PLC

Filter Type:

HVAC Air Filter

Voltage:

220V/380V

Filter Efficiency:

99.97%

Power Source:

Electric

Material:

Wire Mesh And Non-Woven

Frequency:

50Hz

Mixing Rate:

Customized

Highlight:

HVAC Filter Making Machine

PLC Control HVAC Filter Making Machine

800mm Knife Pleating Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

plywood cases

Delivery Time

40-45 days

Payment Terms

L/C,T/T

380V 3.5m Width Knife Pleating Machine 0 - 85 pleats/Min Speed

Get Best Price

Video

Full Auto Pocket Filter Making Machine Electric Outer Frame Forming Machine

Get Best Price

1550mm HVAC Filter Making Machine Automatic Cross Cutting Machine

Get Best Price

1050mm HVAC Filter Making Machine 220V / 380V Paper Pre Slitting Machine

Get Best Price

Contact Now

Product Description

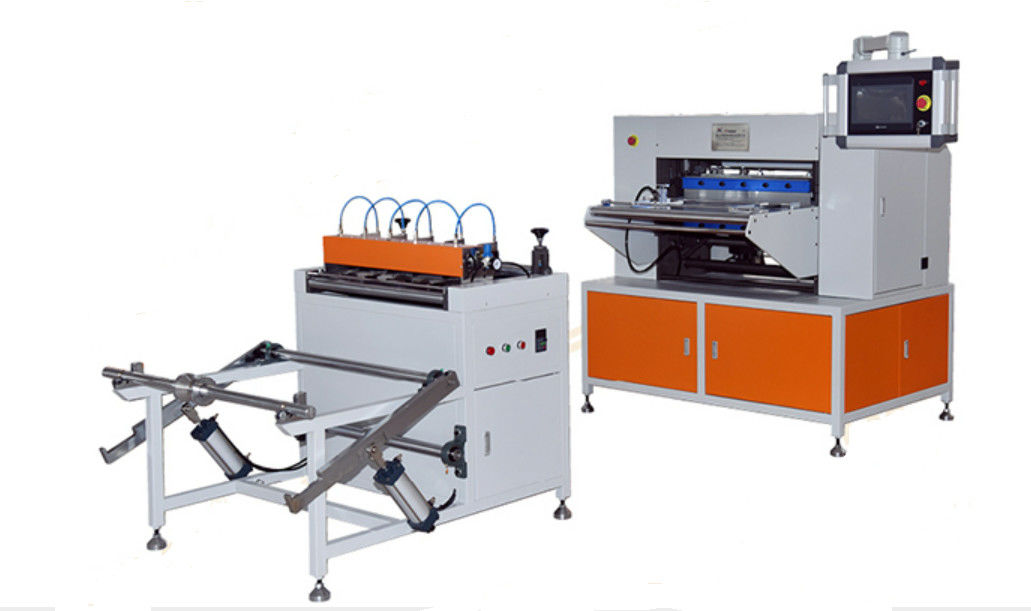

800mm Width Panel Knife Pleating Machine

Technical Parameters:

Max Width	800mm
Adjustable pleating height	8-100mm
Pleating speed	0-200pleats/min (adjustable)
Power supply:	220V/50Hz, Single Phase
Motor Power:	0.75KW
Heater power	2kw
Heating Temp:	Room temperature-200℃
Working air pressure:	0.6Mpa
M/C weight	500kg
M/C size	167012001240mm
Media:	any paper

Features:

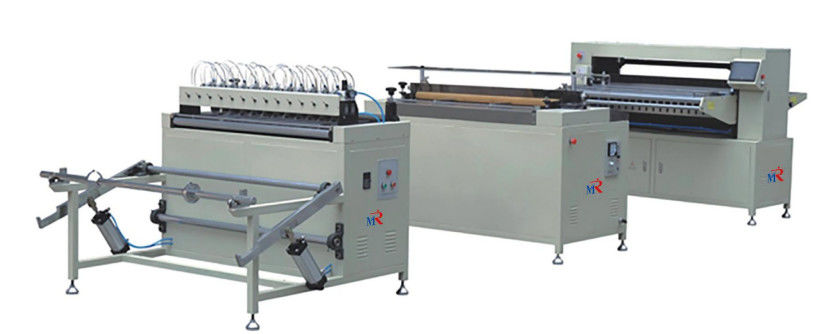

1.The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. It is simple operated but smooth and effective. After slitting the paper, the conveyor for feeding the filter paper runs in synchronism with the marking machine by equipping the infrared monitoring system.

2.The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading.

3.The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.

4.After marking, the filter paper will be pleated and pre-heated.

5. The machine is also suitable for folding the iron wire fabric and non-woven fabric of by hydraulic filter, even the multilayer folding.

6. Auto adjust pleating blade height no need manual adjust.
